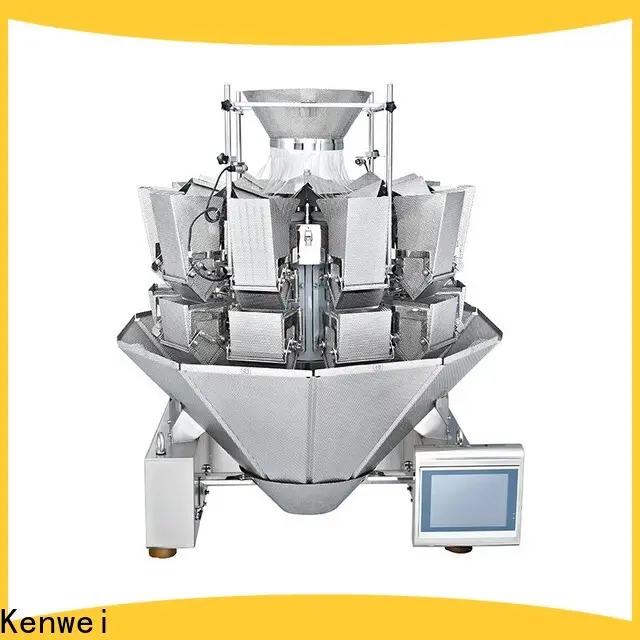

quality assured multihead weigher factory
The frozen combination scale adopts IP65 grade waterproof chassis, which effectively prevents the damage of electrical components inside the chassis. It is suitable for quantitative weighing of various frozen materials such as dumplings, shrimps and so on. The maximum weighing speed of the 14 head frozen multihead weigher can reach 120 packs per minute, and the cost-effective ratio is high.
Product Features
Product Characteristic
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
Technical Specification
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-7 | A14-1-7 |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 120P/M |
Hopper Volume | 1.6L/2.5L | |
Control Panel | 7” Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /12A |
Packing Dimension(mm) | 1620(L)X1100(W)X1110(H) | 1750(L)X1130(W)X1200(H) |
Gross Weight | 380kg | 490kg |
Applications
It is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.
