Noodle Multihead Weigher for Strip Products 1

Noodle Multihead Weigher for Strip Products 2

Noodle Multihead Weigher for Strip Products 3

Noodle Multihead Weigher for Strip Products 4

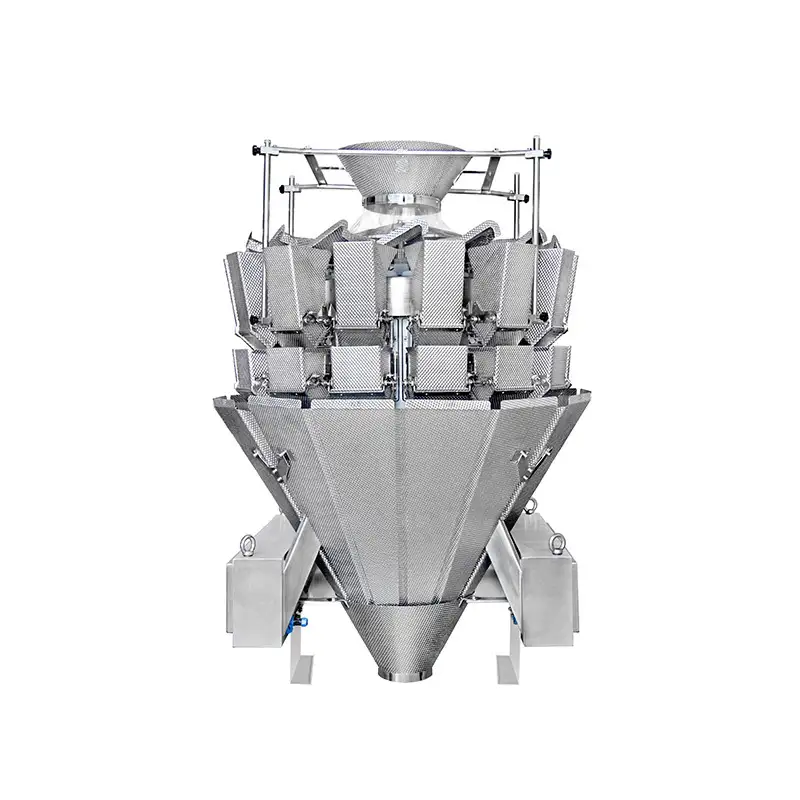

Noodle Multihead Weigher for Strip Products

Model:

JW-A10

MOQ:

1 set

Payment:

L/C, T/T

Place of Origin:

China

Brand:

Kenwei

Identify Code:

A10-1-6

Weighing Range:

10-1000g

Accuracy:

X(0.5)

Max Speed:

30P/M

Hopper Volume:

2.5L

Control Panel:

7”Touch Screen

Options:

Timing Hopper/Printer/Reject Device

Driving System:

Step Motor

Power Requirement:

200V/1000W/50/60/Hz/10A

Packing Dimension(mm):

1620(L)X1100(W)X1420(H)

Gross Weight:

380kg

Inquiry

Write a Review

Material

304 stainless steel

Certification

CE, OIML, SGS

Delivery Time

7-30days

Start Port

zhongshan port

Supply Ability

5000 sets/year

Noodle combination weigher uses pattern board material to avoid material sticking hopper. It is suitable for weighing soft long strip materials such as soft noodles and noodles. Noodle scales are equipped with drying dewatering devices and waterproof chassis of IP65 grade, which effectively prevents the damage of electrical components in the chassis. As a manufacturer of combination weigher, we have our own combination weigher factory.

Product Features

01
Adopt high precision and high accurate loadcell of famous brand, the resolution is improved up to 2 decimal;
02
Program recovery function can reduce operation failures and support multi-segment weight calibration;
03
No products auto pause function can improve weighing stability;

Kenwei -Noodle Weigher - Kenwei Multihead Weighers

product-Noodle Multihead Weigher for Strip Products-Kenwei -img

04
100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;
05
Linear amplitude can be adjusted independently;
06
Many languages are available for global markets.

Product Characteristic

Kenwei -Noodle Weigher - Kenwei Multihead Weighers-2

1.Suitable for products with max 300mm length;
2.IP65 cabinet design, dimple plates for food contact parts;

Kenwei -Noodle Weigher - Kenwei Multihead Weighers-3

3.Air pressure system built-in cabinet prevents the electronic components from damage due to humidity;
4.60° steep discharge chute makes sure products discharge smoothly;

Kenwei -Noodle Weigher - Kenwei Multihead Weighers-4

5.Equipped with a specially designed central cone, rotary top cone and dispense the products into each linear feeder pans evenly;
6.Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers.

Kenwei -Noodle Weigher - Kenwei Multihead Weighers-5

Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

Technical Specification

Model	JW-A10	JW-A14
Identify Code	A10-1-6	A14-1-6
Weighing Range	10-1000g	10-1500g
Accuracy	X(0.5)	X(0.5)
Max Speed	30P/M	60P/M
Hopper Volume	2.5L
Control Panel	7” Touch Screen
Options	Timing Hopper/Printer/Reject Device
Driving System	Step Motor
Power Requirement	200V/1000W/50/60/Hz/10A	220V/1500W/ 50/60Hz /12A
Packing Dimension(mm)	1620(L)X1100(W)X1420(H)	1750(L)X1160(W)X1420(H)
Gross Weight	380kg	490kg
