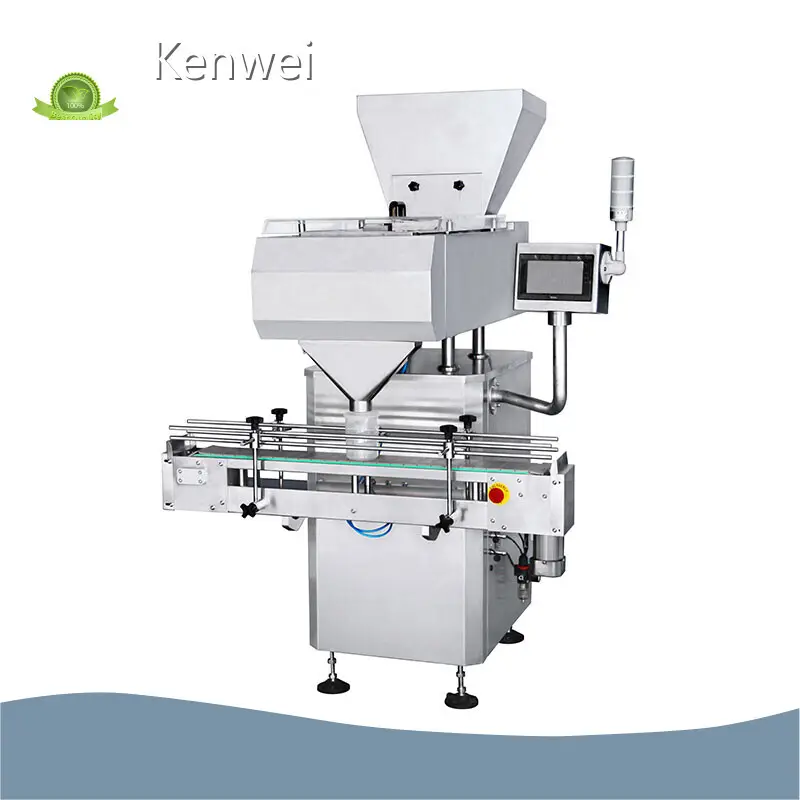

Long Lasting Counting Machine From China for Agricultural Products

The counting machine is a two-channel, eight-track electronic counting device. The whole part is lifted and lowered, and the height of the bottle can be adjusted. The counting machine adjustable range is 50-250mm. Its maximum speed of 3,000 particles per minute is suitable for the pharmaceutical, food, chemical, plastic, health care products and other industries.

• 01
  7-inch full-color touch screen, adjustable integral particle speed
• 02
  Man-machine interface, convenient operation
• 03
  Tack type, double channel design can increase the counting speeds
• 04
  100 sets of working parameter settings can be saved, no need to reset if the line change quickly
• 05
  Applicable to the demand of different shape products counting; easy to operate

• 06
  Counting parts rise or fall, can with stepless adjustment, adjustable range 50-250mm
• 07
  Dust protection cover to ensure hygiene for products
• 08
  Equipped with conveyor equipment to achieve docking with front and rear equipment
• 09
  Infrared electronic grain, automatically obtain the sensitivity value and material characteristics, convenient to set parameters
• 10
  High-speed CAN bus control, easy to expand the number of grain channels.Technical Parameters

Product Characteristic

bg

1.The second-stage vibrating pan feeding can effectively control the material fluidity and continuity,and avoid the stacking of materials.;
                 2.Double-channel control unit,which can realize optional switching and independent control of dual-outlet and single-out,which has greater flexibility.;

3.nfrared electronic counting head,real-time monitoring of material passing conditions,high-speed resolution and rapid response;

4. The electric gate can realize the rapid interception of materials and ensure the accuracy of the counting;

5.One-button automatic up and down that can realize automatic matching different height of bottles,more intelligent operation.

Technical Specification

bg

Model	JW-SL8
Identify Code	SL8-1-1
Number of Vibrating Tracks	8
Drug Specifications	Φ：5-12mm, L：5-25mm
Bottle Diameter	20-100mm
Bottle Height	40-240mm
Speed	4000pcs/min
Bottle Filling Speed	10-60bottle/min
Power Requirement	220V/800W/ 50/60Hz
Machine Dimension	1350(L)X1400(W)X1790(H)
Gross Weight	400kg

Applications

bg

It is suitable for pharmaceuticals, food, hardware, chemicals, plastics, health products and

other industries, to capsules, tablets, granules and other drugs or food candy, hardware, plastic pieces count.

Company Advantages

· Kenwei counting machine is designed by a professional team of designers who are strictly hired by our company.

· The reliability of this product guarantees a consistent performance throughout the lifetime and ultimately ensures the total cost of ownership is as low as possible.

· Guangdong Kenwei Intellectualized Machinery Co.,LTD. provides comprehensive and thoughtful sales support.

Company Features

· Kenwei has high technology and expertise to produce counting machine.

· Guangdong Kenwei Intellectualized Machinery Co.,LTD. has gained technology patent and other patents of counting machine.

· We are committed to extending our responsible and sustainable practices to every aspect of our business, from our own quality control to the relationships we have with our suppliers.

Application of the Product

Kenwei's counting machine can be used in multiple industries.

In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
