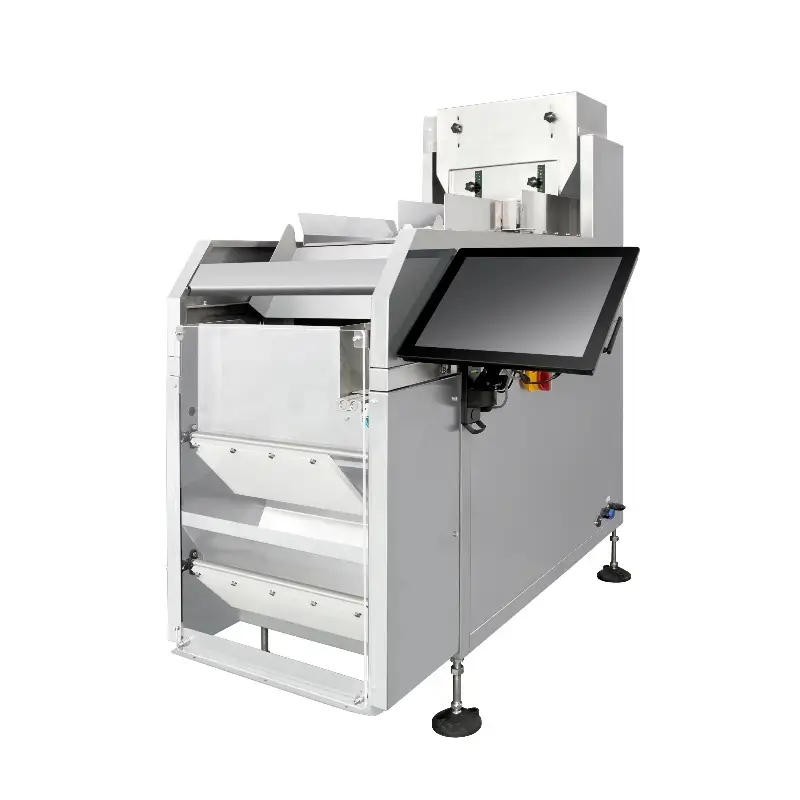

Boost your production efficiency with the Secondary Two-channel 303 Visual Counting Machine. Featuring dual-channel counting and upgraded visual recognition, it delivers fast, accurate, and stable performance for small-item packaging. Compact, flexible, and designed to reduce blockages, it’s an ideal solution for pharmaceuticals, supplements, and hardware industries.
1.Using an industrial-grade tablet computer, it can store massive amounts of programs and data.
2.Touch screen industrial control screen, friendly interface and convenient operation.
3.Using imported high-speed linear CCD sensor and high-definition optical lens, the smallest material can be counted2.0mm.
4.Advanced software processing algorithms can effectively identify overlapping materials and tiny impurities in materials.
5.The wide flat vibrating plate and double-layer pneumatic storage bin improve the counting speed of large packaging materials.
6.Intelligent alarm function: automatic alarm for material shortage, abnormal counting, and abnormal packaging machine.
![Secondary Two-channel 303 Visual Counting Machine JW-SLV303 6]()
Adopting double vibration plate design, wide flat plate vibration plate waterfall type high-speed feeding, V-shaped line vibration plate single row feeding precision compensation, double vibration plate feeding at the same time, improving work efficiency.
![Secondary Two-channel 303 Visual Counting Machine JW-SLV303 7]()
The double-layer pneumatic revolving bucket door, combined with a large-volume silo, improves the counting efficiency of large-package materials.
![Secondary Two-channel 303 Visual Counting Machine JW-SLV303 8]()
The linear vibrator pan is matched with an independent straight inserted bucket door, which cuts the material quickly and improves the counting accuracy.
Technical Specification
bg
| Model |
JW-SLV303 |
| Identify Code |
SLV303-2-1 |
|
Number Of Vibrating Tracks
|
2 |
|
Materials Specifications
|
2.0~30mm
|
|
Counting error*
|
≤2%
|
|
Gas Source Requirements
|
0.5~0.8 MPa
|
|
Max. Speed*
|
16000 pcs/min
|
|
Power Requirement
|
220V/800W/50/60Hz/4A
|
|
Packing Dimension (mm)
|
1400(L)x820(W)x1450(H)
|
|
Gross Weight
|
220kg
|
|
*: Depends on product shape, product density, target weight etc.
|
|
It is suitable for fast and accurate counting of pills, electronic components, hardware, plastic parts, food and candy and other materials with uniform specifications.
