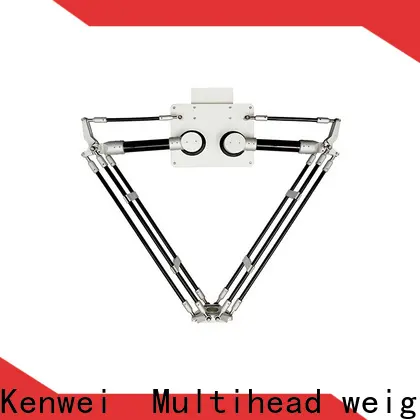

OEM ODM Kenwei delta robot supplier
1. This product is a standard 2-axis parallel manipulator, which has the characteristics of convenient installation and maintenance, simple structure, small space occupation, good reliability, and beautiful appearance.
2. Simple modularization, easy installation and debugging, long service life, low maintenance cost, and multi-angle visual control.
3. It has the ability to grab and place, and the vision system automatically locates and grabs, and performs automatic palletizing and sorting according to product placement requirements.
Different types of suction cup fixtures can be selected according to different packaging and can be matched with simple suction cups/jig suction cups.
Can add intermediate rotary axis and tilt axis.
The connecting structure is made of carbon fiber material, which is light in weight, sensitive in action, and less in vibration.
| Model | JW-D2-1000-00 |
| Identify Code | D2-1000-1-1 |
| Repeat Accuracy | ±0.2mm |
| Max. Speed | 100 P/M |
| Working Range | 1000X360mm |
| Max Load | 3000g |
| Structure Type | Two Axes in Parallel |
| Power Requirement | 220V/2000W/50/60Hz/10A |
| Packing Dimension(mm) | 1200(L)X1000(W)X500(H) |
| Gross Weight | 70kg |
#: Depends on product shape, product density, target weight, etc. | |
