Kenwei standard packing machine customization

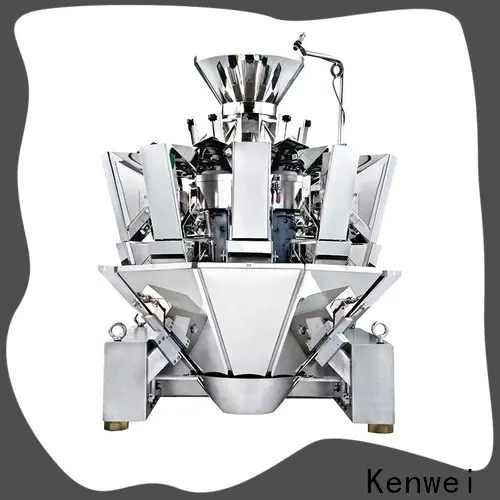

The leak proof multi head weigher adopts a special deep U-shaped vibrating plate to avoid material leaking to both sides of the vibrating plate when weighing. It is suitable for the quantitative weighing of various micro-particles such as rice, chicken essence, monosodium glutamate and other materials. The newly added multi-angle hopper effectively distributes materials to the vibrating plates of various lines, reduces production costs and improves economic benefits.
Product Features
Product Characteristic
2.Specially designed U-shaped linear feeder pans can avoid leaking problems.
Technical Specification
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-4 | A14-1-4 |
Weighing Range | 20-1000g | 20-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 120P/M |
Hopper Volume | 1.6L/2.5L | |
Control Panel | 7” Touch Screen | |
Options | Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /12A |
Packing Dimension(mm) | 1620(L)X1100(W)X1110(H) | 1700(L)X1110(W)X1265(H) |
Gross Weight | 380kg | 490kg |
Applications
It is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc
