Kenwei is a global professional manufacturer which specialized in weigher packing machines and multihead weigher machines.

Kenwei pouch packing machine design1

Model:

JW-A24

MOQ:

1 set

Payment:

L/C, T/T

Place of Origin:

China

Brand:

Kenwei

Identify Code:

A24-2-1

Weighing Range:

5-240g

Accuracy:

X(0.5)

Max Speed:

Mixing Pruduct:60P/M(Mix 4 Products)

Hopper Volume:

0.5L

Control Panel:

10.1'' Touch Screen

Options:

Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System:

Step Motor

Power Requirement:

220V/1500W/ 50/60Hz /10A

Packing Dimension(mm):

1800(L)x1250(W)x1110(H)

Gross Weight:

440kg

Inquiry

Material

304 stainless steel

Certification

CE, OIML, SGS

Availability

OEM/ODM

Delivery Time

7-30days

Start Port

zhongshan port

Supply Ability

5000 sets/year

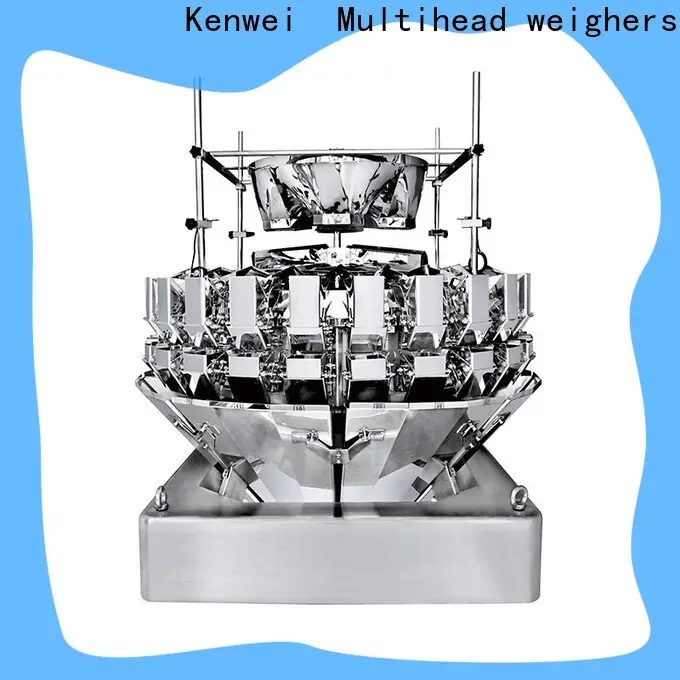

24 head mixing multihead weigher is a weighing equipment with 24 weighing hoppers for mixing four kinds of materials. It uses separate hoppers for mixing formula materials. It meets the requirements of two-in-one, three-in-one and four-in-one. It is suitable for granular materials with good fluidity, such as tea, beans, coffee beans and monosodium glutamate.

Product Features

01
Can use for 2 in 1 ,3 in 1 and 4 in 1 mixing products
02
The weight of the mixing can be automatically compensated by the last products
03
High accuracy and tailored load cell
04
Intelligent alarm diagnosis

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers

04
High speed stagger dump function
05
New Modular and CAN bus technology,more efficient and stable
07
Modbus Industry communication protocol

Product Characteristic

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers-1

1.Upper storage funnel is divided to weight two different products
2. Separate main vibrator,control the thickness of product independently

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers-2

3. Integral machine frame and machine cabinet contributes to more satbilty and higher accuracy

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers-3

4.Uniform design standards, and mould processing,contribute to better interchangeability for apare parts.

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers-4

5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy

Technical Specification

Model	JW-A24	JW-A24
Identify Code	A24-2-1	A24-2-2
Weighing Range	5-240g	5-240g
Accuracy	X(0.5)	X(0.5)
Max Speed	60P/M(Mix 4 Products)	60P/M(Mix 3 Products)
Hopper Volume	0.5L	0.5L
Control Panel	10.1” Touch Screen	10.1” Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/Reject Device	Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System	Step Motor	Step Motor
Power Requirement	220V/1500W/ 50/60Hz /10A	220V/1500W/ 50/60Hz /10A
Packing Dimension(mm)	1800(L)x1250(W)x1110(H)	1800(L)x1250(W)x1110(H)
Gross Weight	440kg	440kg

Applications

Kenwei -2g 24 Heads Mixing 4 Products Weigher 05l | Multihead Weighers-5

It is suitable for weighing small granules such as seeds, tea, coffee beans etc..

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
