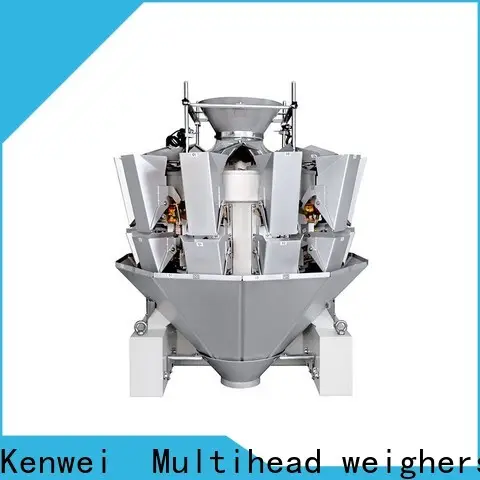

Kenwei multihead weigher customization
The hardware combination scale adopts a special sensor, which has super impact resistance. It is suitable for weighing small parts such as hardware, plastics and so on. The hardware combination weighing scale adds noise-proof PVC device in the part of contacting material, which effectively prevents the noise caused by collision between material and combination weighing scale during operation.
Product Features
Product Characteristic
2. Tailor-made thickened hopper.
Technical Specification
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-15 | A14-1-15 |
Weighing Range | 10-2000g | 10-3000g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 120P/M |
Hopper Volume | 1.6L | |
Control Panel | 7'' Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/50Hz/60Hz/10A | 220V/1000W/50Hz/60Hz/10A |
Packaging Dimension (mm) | 1620（L）X1100(W)X1420(H) | 1700（L）X1130(W)X1280(H) |
Gross Weight | 380kg | 480kg |
Applications
It is suitable for weighing small hardwares and plastic parts, length is less than 80mm, single piece weight is less than 100g.
