Kenwei low moq pouch packing machine one-stop service

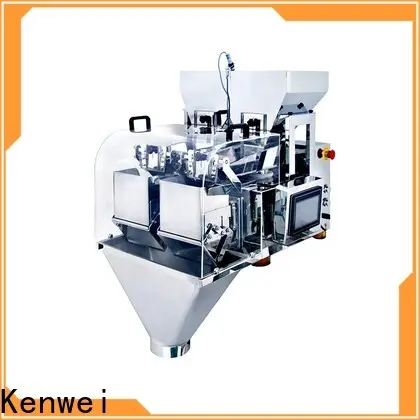

Linear weigher is suitable for quantitative weighing of powdery and small granulated materials, such as white sugar, salt, monosodium glutamate, chicken essence, milk powder, coffee, seasoning powder, etc. Linear scale has up to 5 specifications to choose, and the maximum weighing speed can reach 70 bags/minute, which is the first choice for weighing powdery materials.
Product Features
Product Characteristic
2. Rigid design for vibrator and feed pan make feeding strictly correct ;
Technical Specification
Model | JW-AX1 | JW-AX2 | JW-AXM2 | JW-AX4 | JW-AXS4 |
Identify Code | X1-2-1 | X2-2-1 | XM2-2-1 | X4-2-1 | XS4-2-1 |
Weighing Range | 20-2000g | 20-3000g | 1000-12000g | 20-2000g | 2-300g |
Accuracy | X(1) | X(1) | X(1) | X(1) | X(1) |
Max Speed | 10-15P/M | 30P/M | 25P/M | 55 P/M | 70 P/M |
Hopper Volume | 4.5L | 4.5L | 15L | 3 L | 0.5 L |
Parameters Press No. | 100 | 100 | 100 | 100 | 100 |
Max Mixing Products | 1 | 2 | 2 | 4 | 4 |
Power | 700W | 1200W | 1200W | 1200W | 1200W |
Power Requirement | 220V/50/60Hz/5A | 220V / 50/60Hz / 6A | 220V / 50/60Hz / 6A | 220V/50/60HZ/6A | 220V/50/60HZ/6A |
| Packing Dimension(mm) | 860(L)*570(W)*920(H) | 920(L)*800(W)*890(H) | 1215(L)*1160(W)*1020(H) | 1080(L)*1030(W)*830(H) | 820(L)*800(W)*700(H) |
| Grodd Weight | 80kg | 130kg | 280kg | 160kg | 135kg |
Applications
It is suitable for weighing slice ,roll or ragular shape products such as sugar ,salt ,seed ,rice , seasame , glutamate ,milk powder ,coffee and season powder etc.
