Kenwei combined bagging machine with high quality for meatballs
1. Kenwei automatic weighing and filling machine is fabricated employing quality-approved raw materials.
2. The product features fine softness. The mechanical extrusion process squeezing and rubbing between the fibers and yarns enhances the ductility of the fabrics.
3. The product is built to last. Its circuit board has high-performance electrical components, minimizing the aging effect and overload that caused by long-time working.
4. The product allows for increased efficiency through higher levels of automation, removing the giant need of workers for the whole work.
5. The product is critical to the production of many of the Nation's goods and services. It is widely used in industries to increase production efficiency.

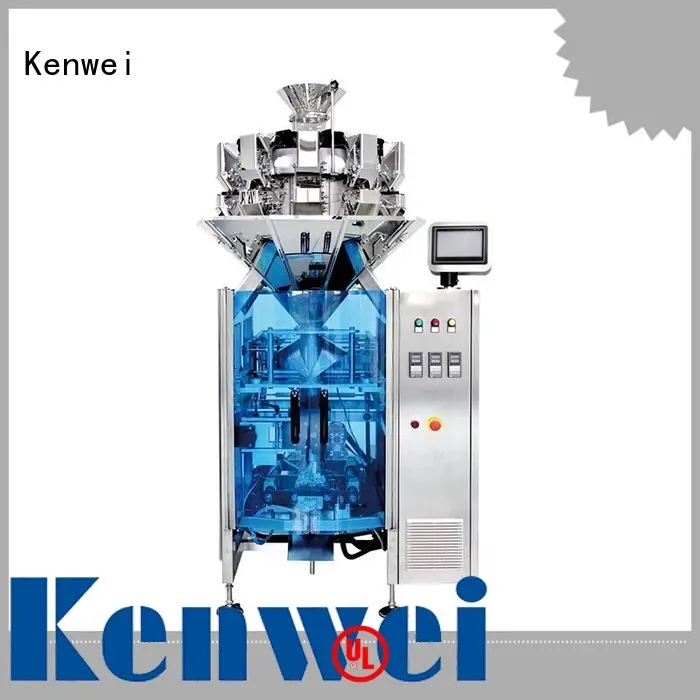

The mini combined weighing and packaging machine is a combination of a miniature multi-head scale and a vertical packaging machine, and the weighing and packaging integrated PLC program control. Fully automatic metering, filling and bag making, date of printing, packaging output, suitable for weighing Chinese herbal medicine pieces, tea, seeds, monosodium glutamate, chicken essence, coffee beans, chocolate and other small particles. The mini combined weighing and packaging machine is cheap, economical and has low maintenance costs.
product features
Application bag tpye and film material
Optional Devices
Gusset device, Nitrogen charging device, chain-bag device, Vibrating device, Punching device, customerized Sealing , Exhaust/Inflatable devices, Easy tear device, PE film sealing, Bag support device, Anti-Static electricity device, vacuum device, Horizontal sealer cooling, Film rectify deviation.
Model | JW-MC361005 | JW-MC361405 |
Identify Code | JW-MC361005-1 | JW-MC361405-1 |
Heads No. | 10 | 14 |
Weighing Range | 5-100g | 5-200g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 100P/M |
Hopper Volume | 500ml | 500ml |
Film Width | 140-360mm | 140-360mm |
Bag Size | 60-250(L)*60-170(W) | 60-250(L)*60-170(W) |
Packing Speed | 65Bags/min | 15-100Bags/min |
Film pulling driven by | Servo Motor | Servo Motor |
Horizontal sealing driven by | Air Cylinder | Servo Motor |
Power requirement | 220V/3.8KW/50/60HZ | 220V/4.75KW/50/60HZ |
Gas consumption | 0．4m３/min | 0．15m３/min |
Machine size | 1306(L)*1059(W)*1902(H)mm | 1325(L)*1071(W)*2025(H)mm |
Machine weight | 550kg | 600kg |
Applications
It is suitable for weighing small granules such as seeds, tea, coffee beans etc.
Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has its own advantage to produce bagging machine with high quality.
2. The factory has newly introduced a complete set of manufacturing facilities. These facilities run in a relatively high automation level, which greatly reduces labor cost. This means the product production cost is cut.
3. We are striving to be the trustworthy partner of customers by our automatic weighing and filling machine . Check it! From Guangdong Kenwei Intellectualized Machinery Co.,LTD.'s perspective, service is of great importance for stable development. Check it! To establish the service creed of automatic weighing and packing machine is the base of Guangdong Kenwei Intellectualized Machinery Co.,LTD.'s work. Check it! Our aim is to be one of most advanced companies in filling machine industry in the world. Check it!
We are also produce the following machine,if you internest,
please click it:
PLASTIC BAG MAKING MACHINE
FLEXO AND GRAVURE PRINTING MACHINE
FILM BLOWING MACHINE EXTRUDER
LAMINATING AND COATING MACHINE,PAPER BAG MAKING MACHINE,STRETCH FILM MAKING MACHINE,SLITTING MACHINE,FOLDING MACHINE,PAPER CUTTING MACHINE ETC
PLASTIC RECYCLING MACHINE
|
HERO BRAND Shopping Plastic Bag Making Machine Price, plastic bag making machine price, shopping plastic bag making machine price, plastic bag making machine
Common unwinding
1. Unwinding adopt common loading , max diameter of raw rolling material is φ600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chain plug axle
4. Unwinding with EPC
Top-folding continuously sealing device.
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which suitfor full colours of bag.
3. Adopt import heat wire, steady warming, hard sealing
4. Double adhesive tape device for side sealing bag
5. The continuous sealing device is suitable to thickness of one layer film ≤0.06m/layer
Top folding and round bottom gusset device:
1.14mm high hardness steel plate top folding and round bottom guset
2. Special guide plate and roller ,which offer less friction fold
3. With flat press roller
4. More thin round disc bottom gusset
5. U style mould bottom molding
Soft loop handle bag device
1. Double layer unwinder
2. The whole type steel plate base, and special support bag structure.
3. High quality oval sealing knife from up and down
4. Hydraulic skew angle feeding soft loop
5. 90 degree turnabout gear rotary soft loop
6. Special oblique drag style rotary soft loop
7. Micro-motor driver soft loop handle go forward and back off
8. Centralize style air control system
Patch handle bag device
1. Pneumatic control feeding
2. Turnabout cylinder control patch
3. With flying knife cutting fast
4. Special pattern sealing mould
5. Micro-motor driver patch go forward and back off
6. Base mould of patch device adopt whole steel plate
Heat sealing handle punch
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate
5. Hot handle puncher 20X90m
6. Stroke of puncher :25mm X 2
7. Temperature of puncher 0-300 degree
Photocell of printing and preheating :
1. Printing image tracking adopts photocell from SICK FROM GERMANY
2. The photocell of priting together with high technical computer ,
3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag
4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing .
Side sealing parts:
1. side sealing knife principal axis transmission belt cylinder lifting and down.
2. Side sealing knife with water cycle cooling system.
3. Side sealing knife adopt best of breed material, high temperature heating ametabolic.
4. Side sealing knife with concealed style heating tube, temperature steady
5. Turnover heavy side sealing knife, humanism structure design, turn fast, easy to cleaning.
Convey vollect device:
1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2. When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3. Collect table is driven by Micro-motor reducing servo
Control parts:
1. The main control panel real-display touch screen with Taiwan eview screen
2. Main motor adopt 1.5kw reducer(with braket), driven by the 1.5 kw inverter used YASKAWA FROM JAPAN
4. Driver control program of the whole machine by PLC-panasonic-JAPAN control.
5. Back feeding adopt traction is driven by inverter from JAPAN-YASKAWA
6. Bag feeding is driven by 3 kw servo motor from JAPAN-YASKAW
7. All of pneumatic parts and air cylinders of whole machine all from Shanko-Taiwan
8.. ALL heating adopot AC contactor
9.. Adopt dual intelligent temperature controller
10. The bag making of whole machine operate from inner of machine
Technical data:
Model : ZD800
Bag style: soft loop handle bag,
poly draw handle bag,
patch handle bag
top folden die cut bag,
Orientation: from right to left
Width size of unwinding: 800mm( double )
Diameter of unwinding : 600mm(max )
Length size of bag making: 250-750mm(if want bigger size that should order)
Width size of bag making : 250-600mm
Top folden: 50-75mm
Bottom folden : 30-60mm
Thickness of film : HDPE 0.03-0.06mm
LDPE 0.04-0.08mm
Length size of loop handle tape: 360mm
Thickness of loop handle tape: 0.08-0.25mm
Width size of draw rope tape : 25mm*2(double layer)
Thickness of draw rope tape: 0.04-0.15mm
Width size of patch bag: 150mm
Thickness of patch bag: 0.11-0.15mm*2(double layers)
Speed of bag making:
soft loop handle bag 60 pcs/min
Poly draw handle bag 70 pcs/min
Patch handle bag 60 pcs/min
Die cut handle bag 75 pcs/min
Total power: about 13KW
Working noise : about 90db
Outside of machine : 7800X3200X1850mm
Weight of machine : 3500kg
Air compressor : 7HP
Spare parts follow machine:
1.A set of tools (a toolbox, a 10 # monkey wrench, a set of inside hexagonal wrench, two screwdrivers, a Vector. 8-10,12-14,7-19 leatherhead wrench each have one)
2.Trachea 4, 6,8 each three-meter, each have two4, 6, 8 tracheal tie-in.
3. High-temperature hot Teflon cloth 2 meters, a roll of high temperature rubberized fabric.
4. each heating tube two(heat cutting knife, soft loop handle, preheating,sticking)
5. Small type Proximity sensors two.
6. Small type magnetic contactor four
7. thermocouple 3 pcs.
8. Switch and knob each two.
9. Knife two boxes.
10. Solid state relay two.
11. One Instruction
12. A Instruction of correction , a Instruction of invertor,
13. Level foot plate 16pcs.
14.Power supply copper tie-in 4 pcs
