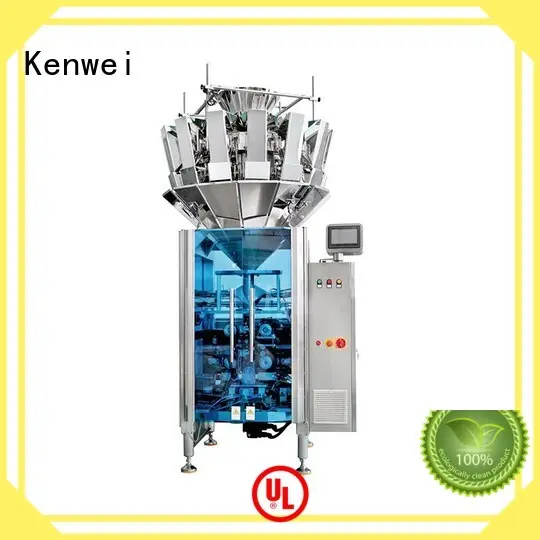

standard automatic weighing and filling machine production outdoor Kenwei
1. Kenwei automatic weighing and filling machine is designed with a distinctive style.
2. The performance of the product conforms to the very latest quality standards.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. is committed to provide swift delivery, full quality service and tracking service for its costumers.
product features
Application bag tpye and film material
Optional Devices
Gusset device, Nitrogen charging device, chain-bag device, Vibrating device, Punching device, customerized Sealing , Exhaust/Inflatable devices, Easy tear device, PE film sealing, Bag support device, Anti-Static electricity device, vacuum device, Horizontal sealer cooling, Film rectify deviation.
Model | JW-MC461016 | JW-HC461416 |
Identify Code | JW-MC461016-1 | JW-HC461416-1 |
Heads No. | 10 | 14 |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 70P/M | 100P/M |
Hopper Volume | 1600ml | 1600ml |
Film Width | 160-460mm | 160-460mm |
Bag Size | 60-300(L)*70-220(W) | 60-300(L)*70-220(W) |
Packing Speed | 60bags/min | 15-100bags/min |
Film Pulling driven by | Servo Motor | Servo Motor |
Horizontal Sealing driven by | Air Cylinder | Servo Motor |
Power Requirement | 220V/4.6KW/50/60HZ | 220V/5.6KW/50/60HZ |
Gas Consumption | 0．6m３/min | 0．2m３/min |
Machine Size | 1645(L)*1140(W)*2509(H)mm | 1800(L)*1140(W)*2659(H)mm |
Machine Weight | 750kg | 800kg |
Applications
It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs etc.
Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. is aimed at providing consumers with the ultimate experience of filling machine.
2. bagging machine are all carefully chosen from fresh and popular automatic weighing and filling machine .
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. will complete customer service system to provide customers with the best service. Our customer-first core value is deeply rooted in all aspects of the Kenwei business. Check now! Our high-quality Kenwei branded products will certainly meet your expectations. Check now! Guangdong Kenwei Intellectualized Machinery Co.,LTD. aims to be the best manufacturer of pouch packing machine in the international market. Check now!
premade bag pouch filling and sealing packing machine
Technical data :
Model | Specialized for food (zipper type) |
No. of working stations | Eight |
Bags size | W:100~200mm L:100~300mm |
Filling Volume | 5 – 1500g depending on type of products |
Capacity | 8-25bags/min (The speed depends on the product status and filling weight)) |
Total power consumption | 3.6Kw |
Machine Weight | Approx. 1,000 Kgs |
Machine Features:
- High quality and performance, the frame is made of 150mm thickness 304# stainless steel.
- Volume changed easy by adjusting handle in the paste filler.
- Good stable and also good machine exterior,Good safety secure and so on
- Own extensive range in filling productions
- Easy operate by touch-sensitive screen , PLC (Siemens) and electric control system
- Friendly man-machine interface
- Speed can be adjusted by frequency conversion within the range.
- Perfect sealing system
- One machine can reduce 4-6 workers
Safety:
No bag – no filling- no sealing, machine alarm
Bag opening miss- no filling-no sealing, machine alarm
Machine stop or alarm when the air pressure is abnormal
Error position display at the control panel
Control panel locate on the right side top of the machine
Outside of the machine and all the parts which touch production all made by stainless steel.
There are several safety doors made by aluminum Profile Frame.
The doors are equipped with safety proximity sensors
Machine surface can be washed by water and brushed by cloth
Sample pouch :
Certificate :
Other related mini doypack machine :
Packaging and shipping :
High Efficiency Small Scale Liquid Detergent Bottle Filling Machine With Assembled Parts
| Application | Cylindrical bottles (glass&plastic) |
| Filling material | Liquids & cream (cosmetic lotion, chemical detergents and oral liquids etc) |
| Filling method | Piston filling & peristaltic pump |
| Cap feeding way | Automatic vibrator (SUS304, polished treatment) |
| Working flow | Bottle feeding + automatic filling + automatic cap feeding +automatic cap screwing + conveying out for packing/labeling |
Electrical brand | Siemens, Weinview, Atonics, Schneider |
