perfect Kenwei pouch packing machine wholesale

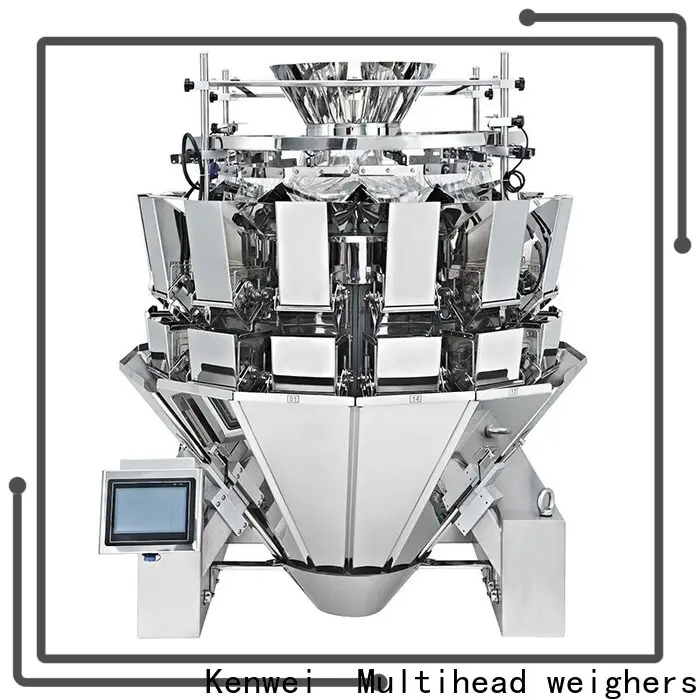

Feeding control multihead weigher is suitable for weighing green pepper, fruit, jelly, and other large bulk materials with less grain count.
The maximum weighing speed of 14 head feeding control multihead weigher is 60 bales/minute, with high weighing accuracy.
Product Features
Product Characteristic
2. Vibration time is automatically adjusted to make sure a good feeding process and improve the combination possibility.
4. Wide V shape feeder pan with an independent photo sensor on its top, feeding process can be more uniform.
6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
Technical Specification
Model | JW-A14 | JW-A10 |
Identify Code | A14-1-8 | A14-1-8 |
Weighing Range | 10-1500g | 10-1000g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 60P/M | 30P/M |
Hopper Volume | 1.6L/2.5L | |
Control Panel | 7” Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1500W/ 50/60Hz //12A | 220V/1000W/ 50/60Hz //10A |
Packing Dimension(mm) | 1700(L)X1110(W)X1265(H) | 1620(L)X1100(W)X1110(H) |
Gross Weight | 490kg | 380kg |
Applications
It is suitable for counting project, such as pepper, fruit, jelly, small packs, tomato, potato, onion, large-shell nuts, etc.
