Kenwei is a global professional manufacturer which specialized in weigher packing machines and multihead weigher machines.

packaging weighing and filling machine easy to disassemble for frozen food 1

packaging weighing and filling machine easy to disassemble for frozen food 2

packaging weighing and filling machine easy to disassemble for frozen food 3

packaging weighing and filling machine easy to disassemble for frozen food 4

packaging weighing and filling machine easy to disassemble for frozen food 5

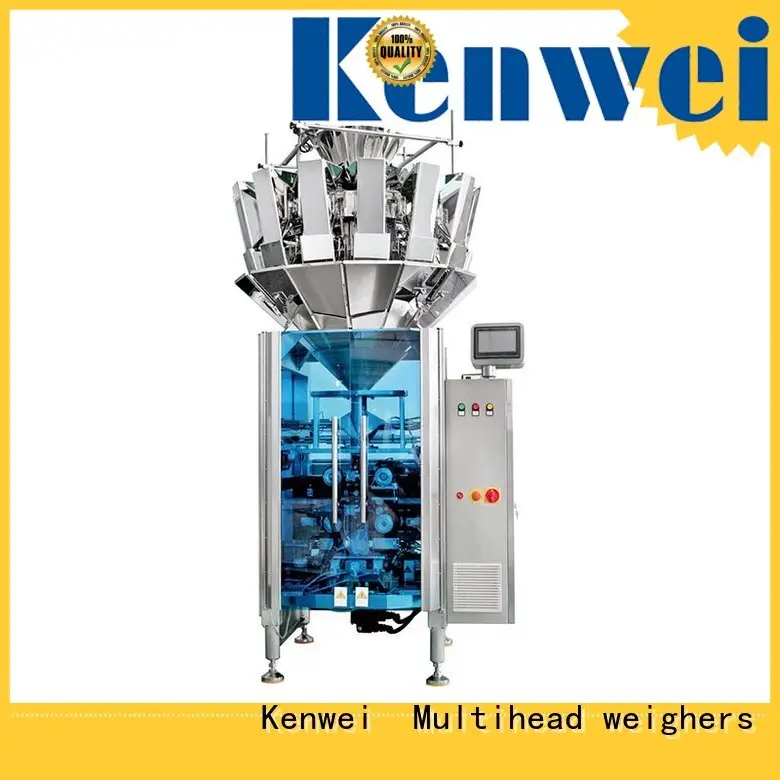

packaging weighing and filling machine easy to disassemble for frozen food

Model:

JW-MC461016

MOQ:

1 set

Payment:

L/C, T/T

Place of Origin:

China

Brand:

Kenwei

Identify Code:

JW-MC461016-1

Weighing Range:

10-1000g

Accuracy:

X(0.5)

Max Speed:

70P/M

Hopper Volume:

1600ml

Heads No. :

Film Width:

160-460mm

Bag Size :

60-300(L)*70-220(W)

Packing Speed :

60bags/min

Film pulling driven by:

Servo Motor

Max.Belt Speed:

55m/min

Belt width:

150mm

Belt Size:

350(L)*160(W)mm

Inquiry

Material

304 stainless steel

Certification

CE, OIML, SGS

Availability

OEM/ODM

Delivery Time

7-30days

Start Port

zhongshan port

Supply Ability

5000 sets/year

Product Comparison

输送机 is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other products in the same category, 输送机 has more advantages, specifically in the following aspects.

Application Scope

称量包装系统 produced by Kenwei is mainly used in the following fields.Kenwei always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

Company Advantages
1. The R&D and design of Kenwei weighing and filling machine involve not only POS system software but the hardware components. The team is dedicated to integrating POS software into hardware seamlessly.
2. filling machine has weighing and filling machine and remarkable economy benefit.
3. filling machine is designed flexibly to make sure it is suitable to everyone.
4. Sales network in Guangdong Kenwei Intellectualized Machinery Co.,LTD. has been extended in all directions.

product features

01
High-precision and high resolution loadcell;
02
1.6L hoppers can be widely used for a variety of common standard materials and standard weights.
03
Combined multihead weigher and vertical packaging machine, fully automatic weighing, filling, date printing, packaging and outputting.
04
Automatic fault alarm system ensures safe and reliable operation.

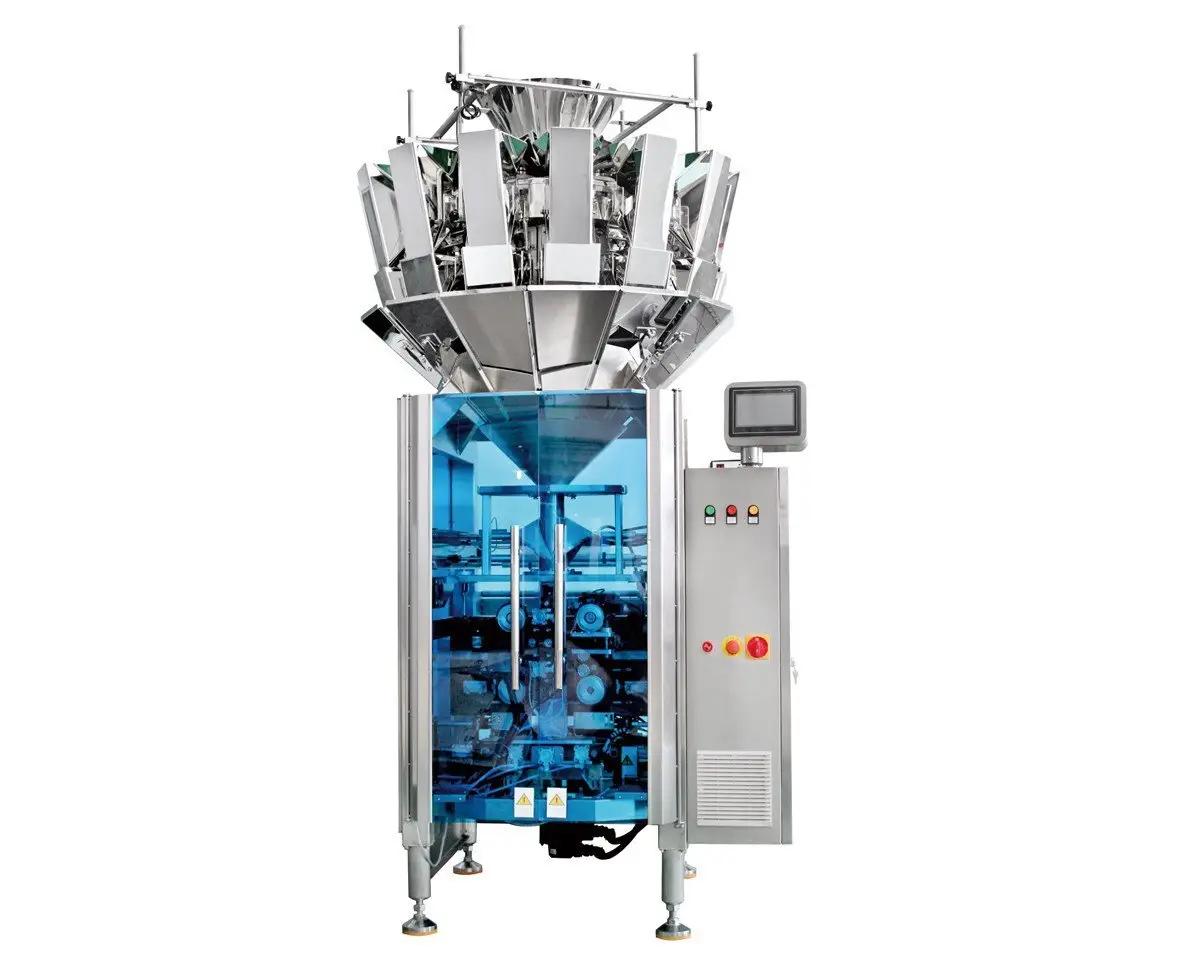

Kenwei -Standard Combined Weighing And Packaging Machine | Automatic

05
Integrated control panel, man-machine interface touch screen, easy operation and maintenance.
06
Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning. Horizontal sealing by servo motor with high speed and high efficiency.
07
Cheap, economical, cost-effective and with low maintenance costs.
08
Low height, small sizes for a variety of standard workshop and small places.

Application bag tpye and film material

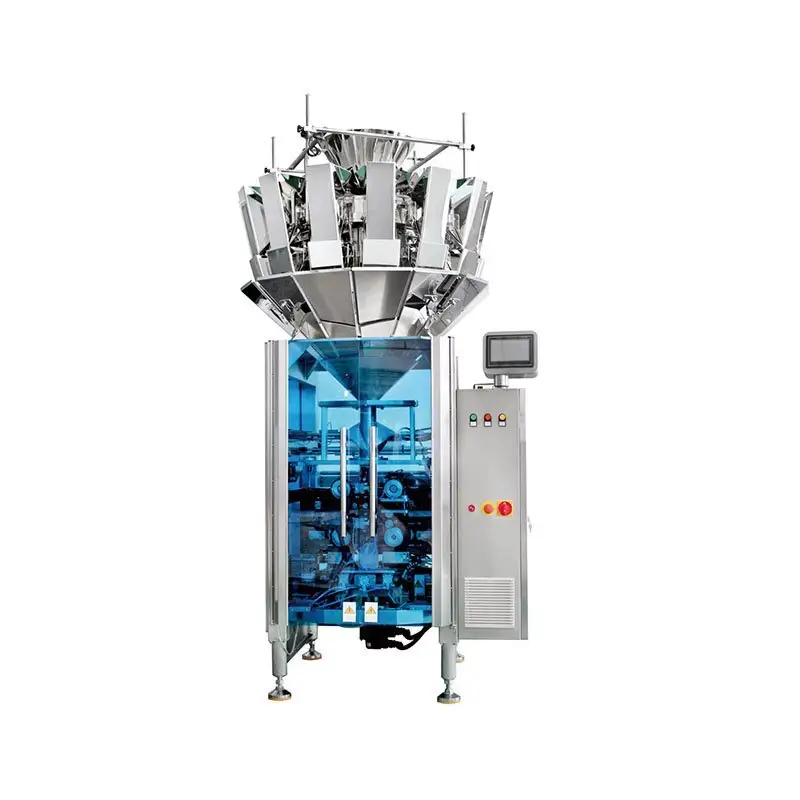

Kenwei -Standard Combined Weighing And Packaging Machine | Automatic-1

Bag type: Pillow bag, Gusset bag, Side seal bag. Film type:A variety of laminated films, single-layer PE film, film thickness range: 0.04mm~0.15mm.

Optional Devices

Kenwei -Standard Combined Weighing And Packaging Machine | Automatic-2

Gusset device, Nitrogen charging device, chain-bag device, Vibrating device, Punching device, customerized Sealing , Exhaust/Inflatable devices, Easy tear device, PE film sealing, Bag support device, Anti-Static electricity device, vacuum device, Horizontal sealer cooling, Film rectify deviation.

Model	JW-MC461016	JW-HC461416
Identify Code	JW-MC461016-1	JW-HC461416-1
Heads No.	10	14
Weighing Range	10-1000g	10-1500g
Accuracy	X(0.5)	X(0.5)
Max Speed	70P/M	100P/M
Hopper Volume	1600ml	1600ml
Film Width	160-460mm	160-460mm
Bag Size	60-300(L)*70-220(W)	60-300(L)*70-220(W)
Packing Speed	60bags/min	15-100bags/min
Film Pulling driven by	Servo Motor	Servo Motor
Horizontal Sealing driven by	Air Cylinder	Servo Motor
Power Requirement	220V/4.6KW/50/60HZ	220V/5.6KW/50/60HZ
Gas Consumption	0．6m３/min	0．2m３/min
Machine Size	1645(L)1140(W)2509(H)mm	1800(L)1140(W)2659(H)mm
Machine Weight	750kg	800kg

Applications

Kenwei -Standard Combined Weighing And Packaging Machine | Automatic-3

It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs etc.

Company Features
1. Time goes on. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has grown into a manufacturer that specializes in developing, supplying and marketing filling machine.
2. Our quality system, ISO-9001 certification is today the fundamental key to our optimized processes in the workflow. It constantly drives improvements and systematically implements corrective processes in order to avoid mistakes to be repeated.
3. Kenwei will be committed to innovation of pouch packing machine and management philosophy. Contact us! Guangdong Kenwei Intellectualized Machinery Co.,LTD. is a company with lofty wishes and great ideals. It is a world-renowned weighing and filling machine supplier. Contact us! With introducing highly advanced machines and technology, Kenwei aims to be an outstanding bagging machine manufacturer. Contact us!
