Vertical Form Fill Seal Machine for Medicinal 10~1500gseries
Product details of the vertical form fill seal machine
Product Specification
Start Port: zhongshan port
Availability: OEM/ODM
Product Description
Kenwei vertical form fill seal machine is made of good-quality materials and beautifully crafted by skilled worker. The product is quality approved and has a long service life. The factory of Kenwei has passed ISO9001: 2008 international quality certification.

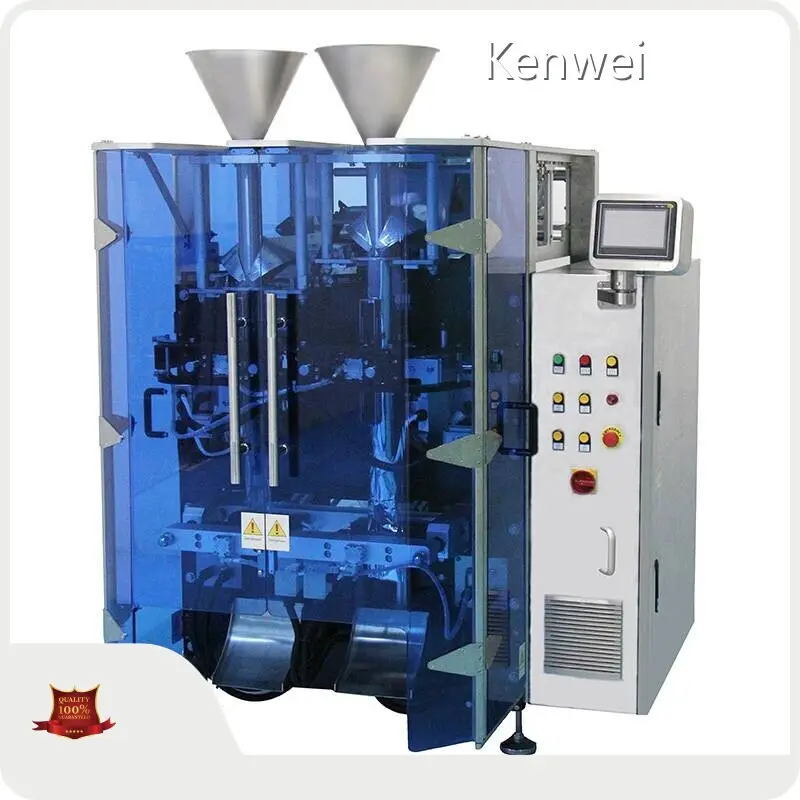

Fully Automatic High-Speed Vertical Double Filling Form-Fill-Seal machine VFFS is characterized by compact structure, a complete range of packaging machines, and auxiliary equipment, which are adaptable to a wide range of materials, space-saving. For A variety of laminated films,single-layer PE film, film thickness range 0.04mm~0.09mm, single PE film, paper Membrane packaging can be applied.The vertical form fill seal machine is a type of packaging machine commonly used in the food, pharmaceutical, and chemical industries. Vffs machine is designed to form a bag from a flat roll of film, fill the bag with product, and then seal it, all in a vertical fashion. The vffs packaging machine machine is efficient and versatile, capable of handling a wide range of products and bag sizes. It is often used for packaging items such as snacks, powders, liquids, and granular products. The vertical form fill seal machine helps companies streamline their packaging process and ensure the efficient and consistent production of packaged goods.
Applicable bag type: pillow bag.
Applicable packing materials: A variety of snack food, deep-frozen food, coffee, oatmeal, granulated sugar, salt, puffed food, rice, herbal, tea, small hardware, etc.
PLC control, man-machine interface, easy to operate and maintain.
Both film pulling driven system and horizontal sealing driven system controlled by servo motor.
Optical tracking devices to keep high packing speed and high accuracy.
The frame of the machine is made of stainless steel #304. equipped with auto-stop protection function when open the door.
| Item No. | JW-HD3830 |
| Film Width | 150~380mm |
| Bag Size Range | L*W=(50~300)*(50~180)mm |
| Packing Speed | 2*90bags/min |
| Film Pulling System | vacuum film pulling system |
| Gas Pression | 0.8MPa |
| Gas Consumption | 0.6m³/min |
| Power Requirement | 6KW/220V/50(60)Hz |
| Machine Size | L*W*H=2050*1850*1915mm |
| Machine Weight | 680KG |
Company Advantage
• Kenwei's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• The sales network of our products covers many regions such as Asia, Europe and Africa.
• Having developed rapidly for years, Kenwei is a machinery manufacturer with a relatively large scale and great business capability.
• Kenwei's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• Our company not only pays attention to the sales of products, but also tries our best to meet the diversified needs of customers. Our goal is to bring consumers a relaxing and enjoyable experience.
Kenwei's multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories have reasonable price and reliable quality. Your consultation and cooperation are sincerely welcome!
