Kenwei is a global professional manufacturer which specialized in weigher packing machines and multihead weigher machines.

Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 1
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 2
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 3
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 4
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 1
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 2
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 3
Quality Multi Head Weigher Machine Multi Head Weigher Machine Company 4

Quality Multi Head Weigher Machine Multi Head Weigher Machine Company

Max Speed:
30P/M
Power Requirement:
200V/1000W/50/60/Hz/10A
Gross Weight:
380kg
Inquiry
Certification
CE, OIML, SGS
Delivery Time
7-30days

Product details of the multi head weigher machine


Product Specification

Certification: CE, OIML, SGS

Delivery Time: 7-30days


Product Description

The production process of Kenwei multi head weigher machine is regulated according to international standards. By cause of the design of multi head weigher machine,Kenwei enjoys a good reputation. A highly professional service is necessary in Kenwei.

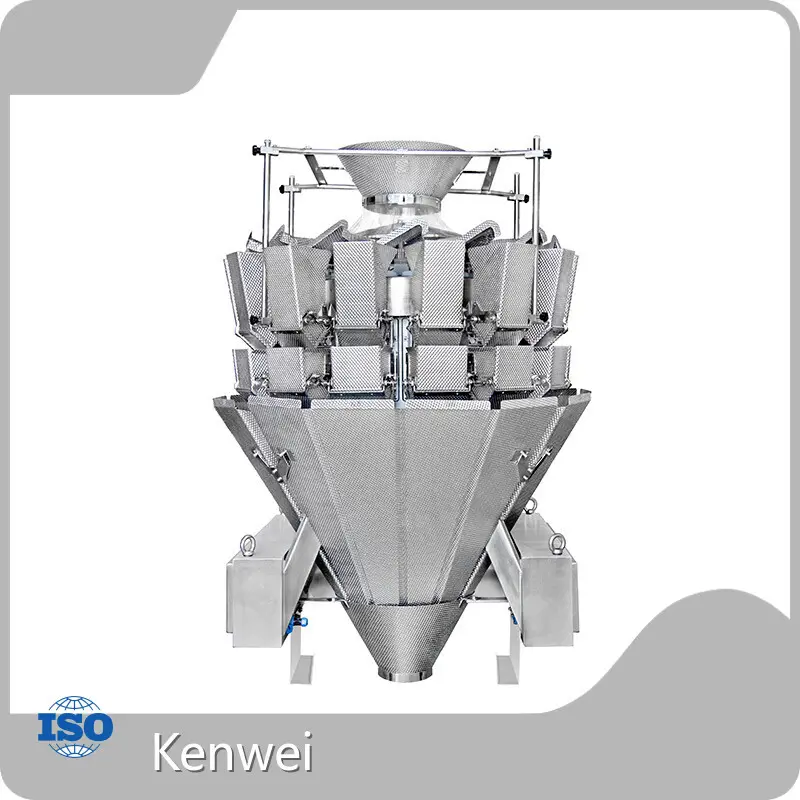

Noodle combination weigher uses pattern board material to avoid material sticking hopper. It is suitable for weighing soft long strip materials such as soft noodles and noodles. Noodle scales are equipped with drying dewatering devices and waterproof chassis of IP65 grade, which effectively prevents the damage of electrical components in the chassis. As a manufacturer of combination weigher, we have our own combination weigher factory.

Product Features

bg
  • 01
    Adopt high precision and high accurate loadcell of famous brand, the resolution is improved up to 2 decimal;
  • 02
    Program recovery function can reduce operation failures and support multi-segment weight calibration;
  • 03
    No products auto pause function can improve weighing stability;
Kenwei -Noodle Weigher - Kenwei Multihead Weighersproduct-Noodle Multihead Weigher for Strip Products-Kenwei -img
  • 04
    100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;
  • 05
    Linear amplitude can be adjusted independently;
  • 06
    Many languages are available for global markets.

Product Characteristic

bg
Kenwei -Noodle Weigher - Kenwei Multihead Weighers-2
1.Suitable for products with max 300mm length;

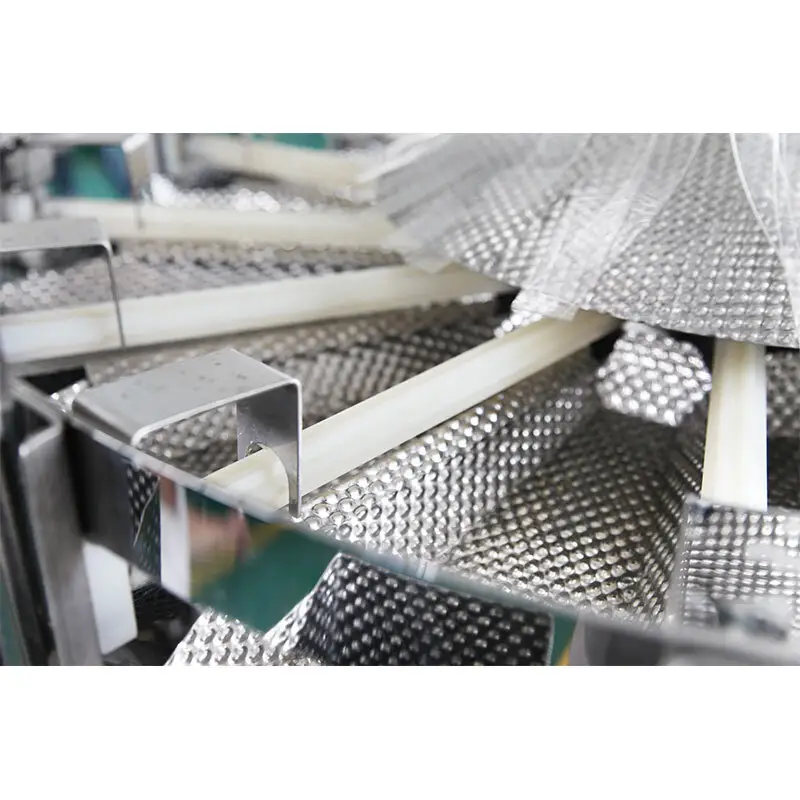

2.IP65 cabinet design, dimple plates for food contact parts;
Kenwei -Noodle Weigher - Kenwei Multihead Weighers-3
3.Air pressure system built-in cabinet prevents the electronic components from damage due to humidity;
4.60° steep discharge chute makes sure products discharge smoothly;
Kenwei -Noodle Weigher - Kenwei Multihead Weighers-4

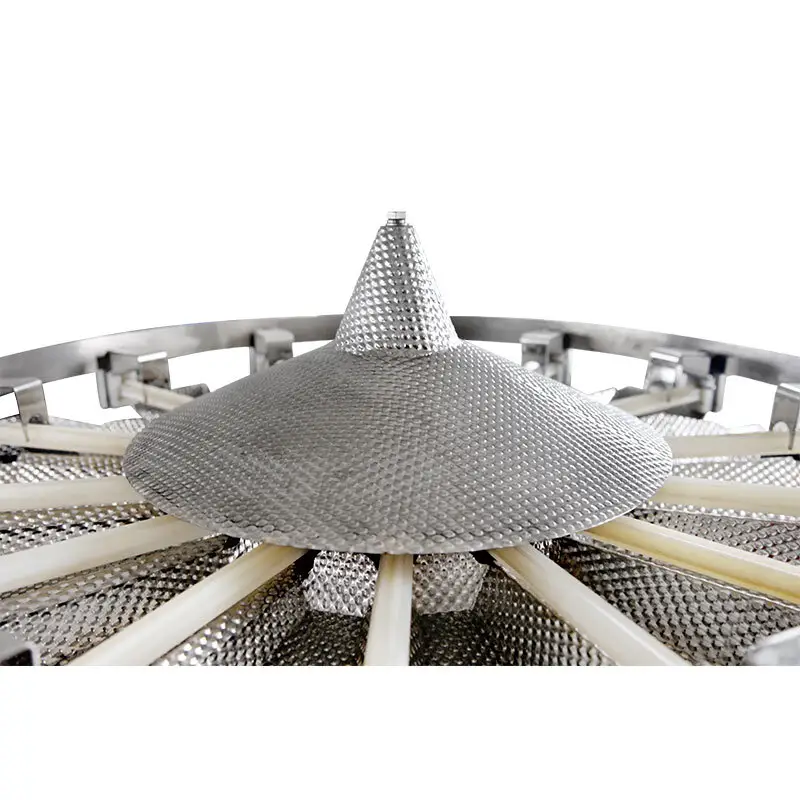

5.Equipped with a specially designed central cone, rotary top cone and dispense the products into each linear feeder pans evenly;
6.Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers.
Kenwei -Noodle Weigher - Kenwei Multihead Weighers-5
Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

Technical Specification

bg



 Model

 JW-A10

 JW-A14

Identify Code

 A10-1-6

 A14-1-6

  Weighing Range

 10-1000g

 10-1500g

Accuracy

 X(0.5)

 X(0.5)

Max Speed

 30P/M

 60P/M

Hopper Volume

 2.5L

Control Panel

 7” Touch Screen

 Options

Timing Hopper/Printer/Reject Device

Driving System

 Step Motor

Power Requirement

 200V/1000W/50/60/Hz/10A

 220V/1500W/ 50/60Hz /12A

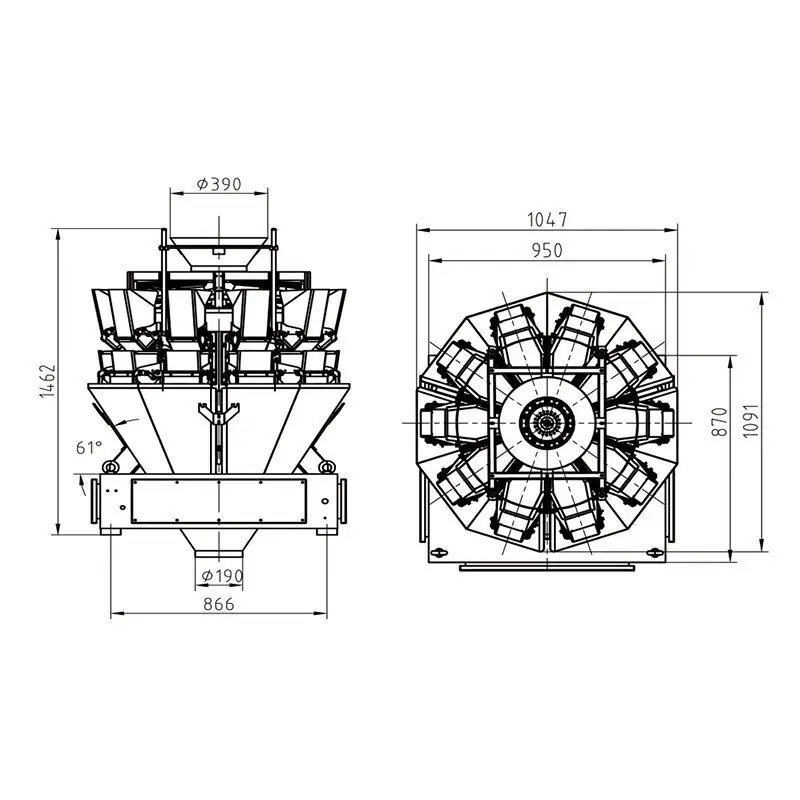

 Packing Dimension(mm)

 1620(L)X1100(W)X1420(H)

 1750(L)X1160(W)X1420(H)

 Gross Weight

 380kg

 490kg

Applications

bg
Kenwei -Noodle Weigher - Kenwei Multihead Weighers-6

It is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout, etc


Company Advantage

• Kenwei's multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation.
• Kenwei runs a comprehensive management system and has an excellent management team. We are committed to standardized production carried out by an experienced production team.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
• Having developed rapidly for years, Kenwei is a machinery manufacturer with a relatively large scale and great business capability.
• Kenwei adheres to the principle of 'users are teachers, peers are examples'. We adopt scientific and advanced management methods and cultivates a professional and efficient service team to provide quality service for customers.
