Long Lasting Small Parts Counting Machine Supply for Medicinal

Product details of the small parts counting machine

Product Specification

Bottle Height: 40-240mm

Availability: OEM/ODM

Certification: CE, OIML, SGS

Quick Detail

Kenwei's mechanical equipment has reasonable design, compact structure and stable performance. Besides, our product is easy and convenient to be operated and installed. Guangdong Kenwei Intellectualized Machinery Co.,LTD.’s design language stems from daily life. The overall performance and durability are guaranteed by the strict quality inspection process. The product sells well throughout the world and is well received by users.

Product Description

Compared with similar products, the small parts counting machine produced by Kenwei has the following advantages.

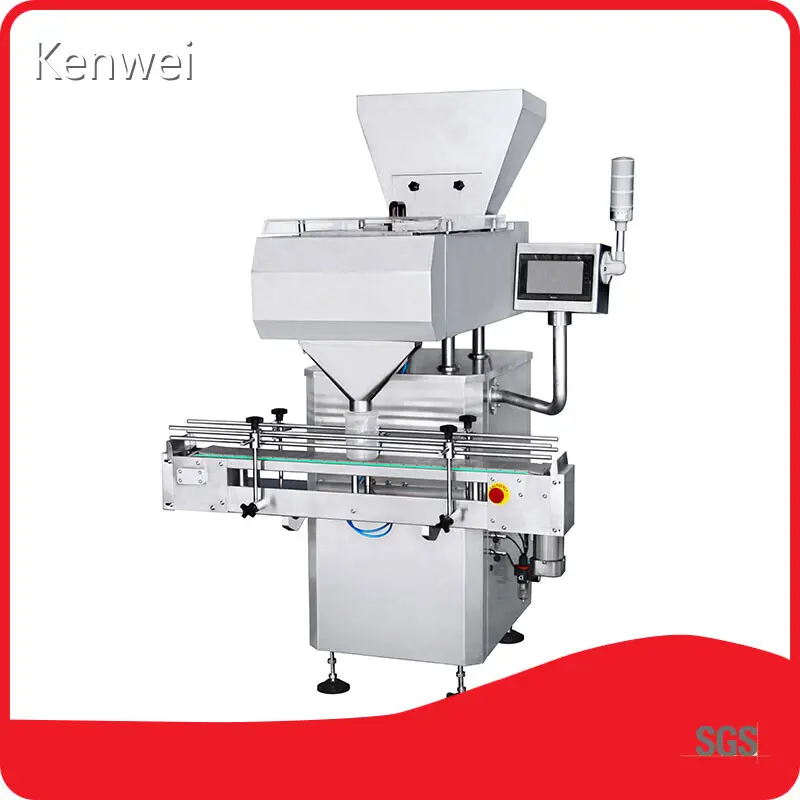

The counting machine is a two-channel, eight-track electronic counting device. The whole part is lifted and lowered, and the height of the bottle can be adjusted. The counting machine adjustable range is 50-250mm. Its maximum speed of 3,000 particles per minute is suitable for the pharmaceutical, food, chemical, plastic, health care products and other industries.

• 01
  7-inch full-color touch screen, adjustable integral particle speed
• 02
  Man-machine interface, convenient operation
• 03
  Tack type, double channel design can increase the counting speeds
• 04
  100 sets of working parameter settings can be saved, no need to reset if the line change quickly
• 05
  Applicable to the demand of different shape products counting; easy to operate

• 06
  Counting parts rise or fall, can with stepless adjustment, adjustable range 50-250mm
• 07
  Dust protection cover to ensure hygiene for products
• 08

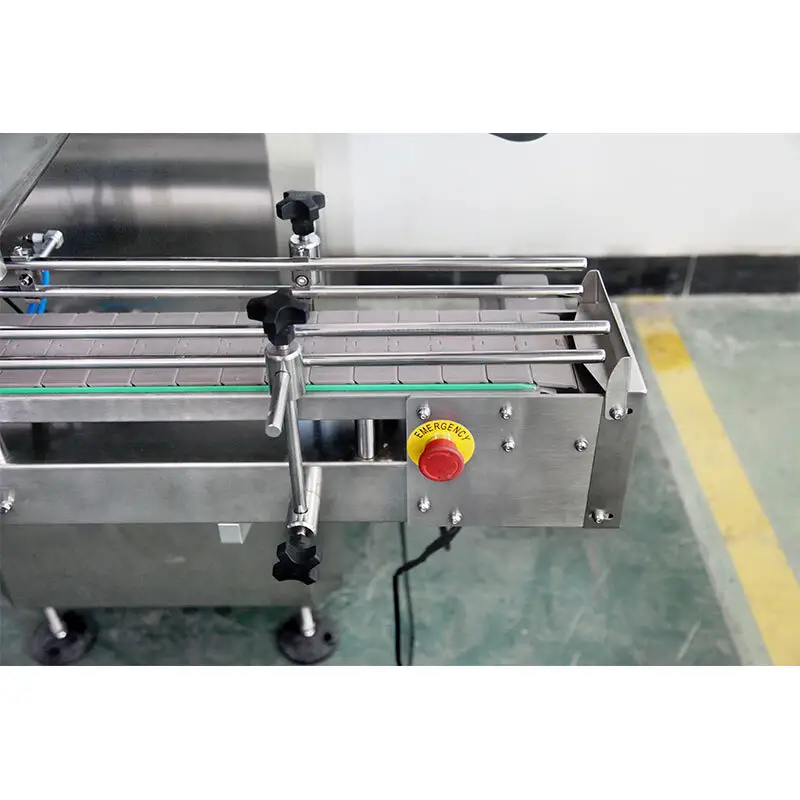

  Equipped with conveyor equipment to achieve docking with front and rear equipment
• 09
  Infrared electronic grain, automatically obtain the sensitivity value and material characteristics, convenient to set parameters
• 10
  High-speed CAN bus control, easy to expand the number of grain channels.Technical Parameters

Product Characteristic

bg

1.The second-stage vibrating pan feeding can effectively control the material fluidity and continuity,and avoid the stacking of materials.;
                 2.Double-channel control unit,which can realize optional switching and independent control of dual-outlet and single-out,which has greater flexibility.;

3.nfrared electronic counting head,real-time monitoring of material passing conditions,high-speed resolution and rapid response;

4. The electric gate can realize the rapid interception of materials and ensure the accuracy of the counting;

5.One-button automatic up and down that can realize automatic matching different height of bottles,more intelligent operation.

Technical Specification

bg

Model	JW-SL8
Identify Code	SL8-1-1
Number of Vibrating Tracks	8
Drug Specifications	Φ：5-12mm, L：5-25mm
Bottle Diameter	20-100mm
Bottle Height	40-240mm
Speed	4000pcs/min
Bottle Filling Speed	10-60bottle/min
Power Requirement	220V/800W/ 50/60Hz

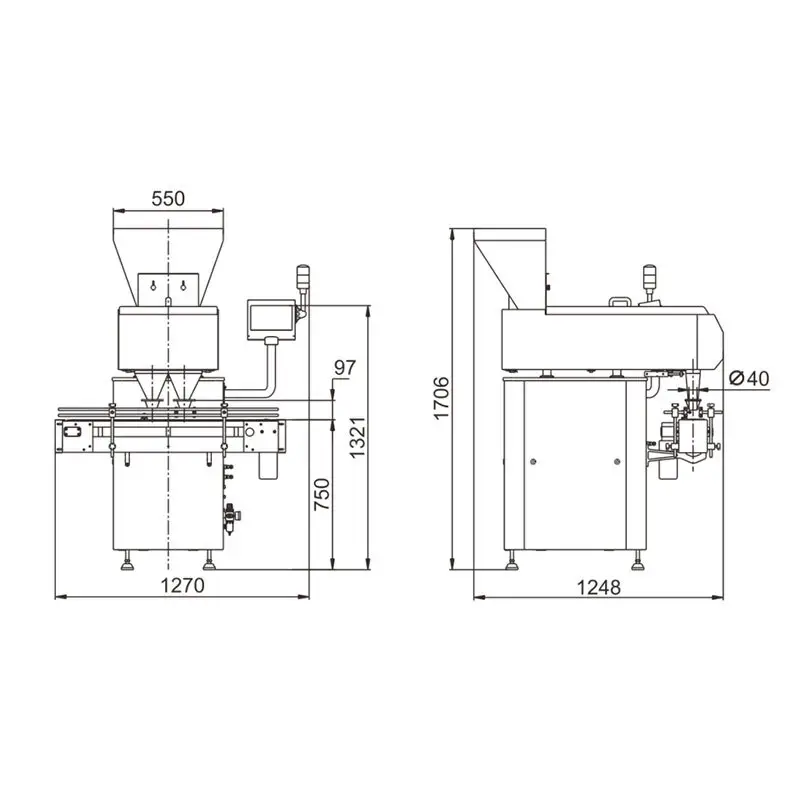

Machine Dimension	1350(L)X1400(W)X1790(H)
Gross Weight	400kg

Applications

bg

It is suitable for pharmaceuticals, food, hardware, chemicals, plastics, health products and

other industries, to capsules, tablets, granules and other drugs or food candy, hardware, plastic pieces count.

Company Advantages

Guangdong Kenwei Intellectualized Machinery Co.,LTD., located in zhong shan, mainly manages the business of multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories. Our company will continue to carry forward the enterprise spirit of 'integrity, innovation and high efficiency'. We take products and services as the foundation of our business, and maintain friendly and cooperative relationships with customers. Depending on the advanced technology and good reputation, we strive for a permanent and invincible position in the fierce industry competition. Our company has built an elite team, based on the comprehensive organization structure and talents cultivation mechanism. All of them are passionate, dedicated, practical and courageous. We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.
Kenwei's multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories are available in multiple types and in reliable quality. Feel free to contact us!
