Kenwei Dog Food Packaging Machine T/Tsupplier
Product details of the dog food packaging machine
Product Specification
Certification: CE, OIML, SGS
Product Information
Kenwei dog food packaging machine is manufactured using quality raw materials and advanced production technology. The product is approved to be of high quality after the thorough test by the third party quality experts. Each dog food packaging machine is produced conforming to the strict production standard.

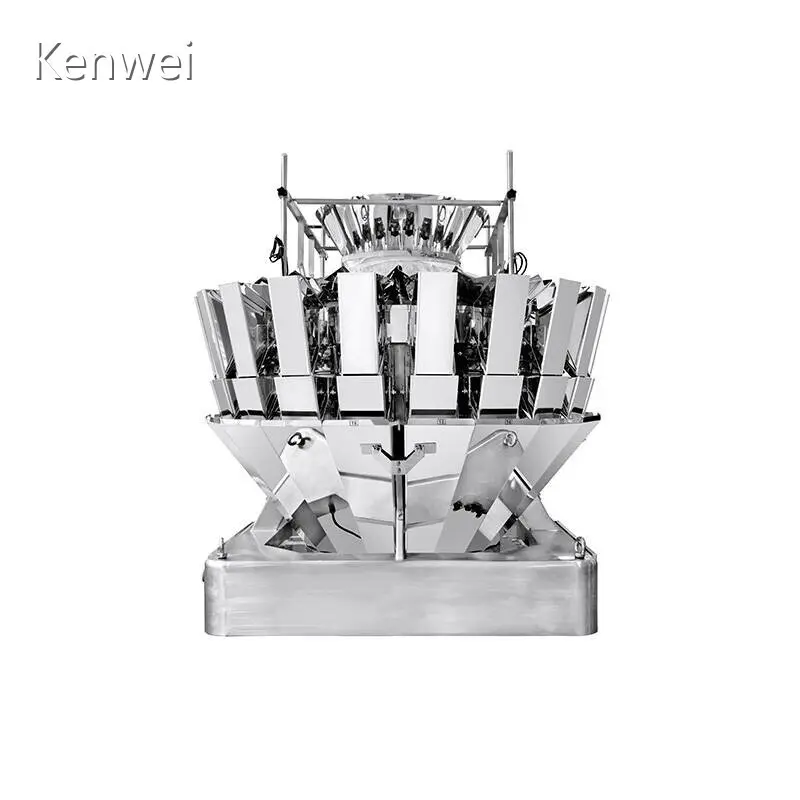

The 20-head combination weigher has two weighing modes. One is the mixing mode. The weighing range of the mixing mode is 20-2000g. According to the material, the maximum weighing speed can reach 65 bags/minute. Another weighing mode is a high-speed mode for a single material, the weighing range is 10-1000g, and the maximum weighing speed can reach 120 bags/min. Both models can be connected to the twin packaging machine, which can be used for weighing or packaging, forming a simple weighing and packaging system.
The upper storage funnel is divided to weigh two different products.
Separate the main vibrator, control the thickness of the product independently.
The integral machine frame and machine cabinet contribute to more stability and higher accuracy.
Machine frame, discharge chute with compatible design, single discharge chute gate can change to double with twin packaging machine when just one kind of product.
Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.
Stable actuator design reduces mechanical vibration and improves the load cell value accuracy.
| Model | JW-A20 | JW-A20 | JW-A20 | JW-A20 | JW-A20 |
Weighing Range | 20-2000g（Mixing Mode）/10-1000g（Single Mode） | 10-1000g | |||
| Identify Code | A20-2-1 (O Type) | A20-2-1 (O Type) | A20-2-3 (8 Type) | A20-2-2 (O Type) | A20-2-4 (8 Type) |
Accuracy | X(0.5) | X(0.5) | X(0.5) | X(0.5) | X(0.5) |
Max Speed | 65P/M（Mixing Mode）/120P/M(Single-Mode) | 2x65P/M(Twin Packing Machine Mode) | |||
Hopper Volume | 1.6L | 2.5L | 1.6L/2.5L | ||
Control Panel | 10.1” Touch Screen | ||||
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||||
Driving System | Step Motor | ||||
Power Requirement | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A |
Packing Dimension(mm) | 1700(L)x1450(W)x1450(H) | 1920(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) | 1950(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) |
Gross Weight | 850kg | ||||
Application
Company Advantage
• Kenwei has a group of highly educated, high-quality and high-level talents. They are the internal motivation for our sustainable development.
• Kenwei has always been providing advanced technology and sound after-sales service for customers.
• Kenwei's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
• Founded in Kenwei has a development history of years. Now we become an experienced manufacturer in the machinery industry.
• In addition to being sold to many cities in China, our products are also exported to Southeast Asia, Africa and other foreign countries, and are highly praised by local consumers.
Based on the professional production technology, Kenwei produces quality multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories in large quantity. Our products are safe and eco-friendly, in line with national quality control standard. We guarantee the quality and provide you with a worry-free buying experience.
