Product details of the food packing machine
Product Specification
Certification: CE, OIML, SGS
Availability: OEM/ODM
Product Information
Kenwei food packing machine is fabricated selecting high quality raw materials. A high level of excellence in the quality and performance of the product has been maintained by our rigorous quality management system. Being high quality and cost competitive, the product will surely become one of the highly marketable products.

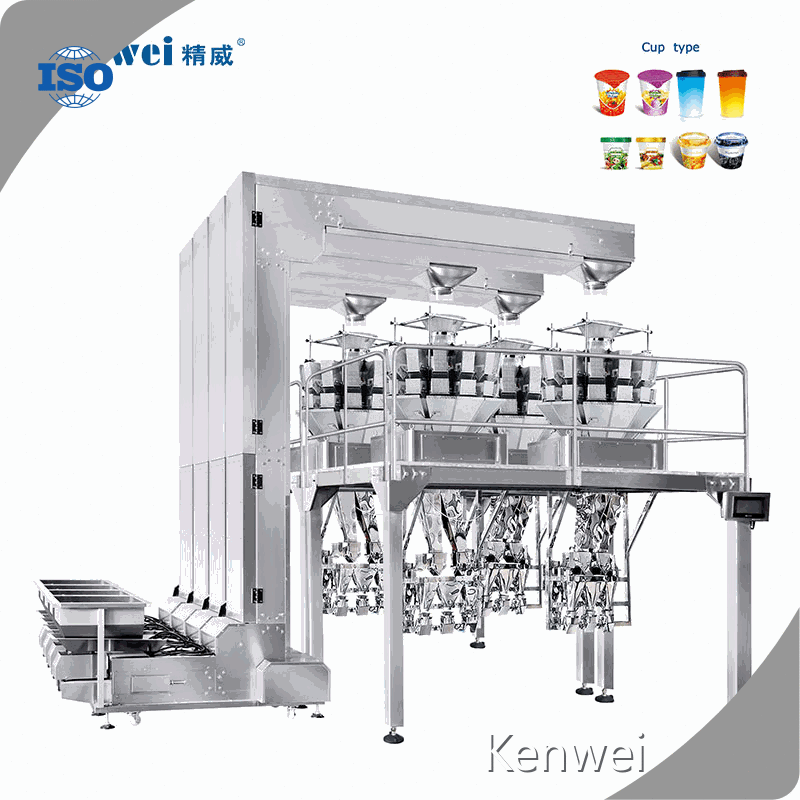

Cup weighing and packing machine
System including: Vibrator feeder, Z bucket conveyor, 14 head Multihead weigher, Material diverter, Automatic cup dropping device, cup model conveyor, capper, Finished product transportation.
1. High accuracy, applicable to filling to two cups in one mould, three cups in one mould, five cups in on mould, three cup in two mould, four cups in two moulds, or five cups in two moulds.
2. Fully automatic finishing whole process of feeding, weighing, filling bag, date printing, finished product output.
3. Applicable to a wide range of materials.
It is suitable for weighing snack foods such as candy, melon seeds, jelly, frozen, pistachio, peanuts, nuts, almonds, raisins, etc, and is suitable for puffed food; hardware, plastic compounds, and other granular, flaky, strip, round and irregular shape material.
![product-Kenwei -img]()
TECHNICAL SPECIFICATION
bg
![product-Kenwei -img]()
Series Model
| Typical Machine | Max.Speed | Max Weight |
One divides into two cup packaging and weighing system | One set of 14 head multihead weigher | 80p/min | 800g |
One divides into three cup packaging and weighing system | One set of 14 head multihead weigher | 80p/min | 800g |
One divides into four cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into five cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into six cup packaging and weighing system | Two sets of 14 head multihead weigher | 140p/min | 800g |
| One divides into eight cup packaging and weighing system | Four sets of 14 head multihead weigher | 280p/min | 800g |
| One divides into ten cup packaging and weighing system | Four sets of 14 head multihead weigher | 280p/min | 800g |
Stuffing machine: It is used to stuffing the small bag into the cup, like desiccant, the flavoring bag etc. | Capping equipment: Capping after sealing the cup, the form of capping including capping alone or capping with add teaspoon and flavoring bag etc. | Labeller: Label on the cup, the form of label including unilateral label, bilateral label etc. | Material diverter: When need filling more than one cup in one time, then use this device. Such as, filling 2 cup in one time use one to two diverters, filling 4 cup in one time use one to four diverter. |
