For Snack Food Multi Head Weigher Machine OEM/ODM by Kenwei
Product details of the multi head weigher machine
Product Specification
Delivery Time: 7-30days
Availability: OEM/ODM
Quick Detail
Our material for multi head weigher machine is different from other companies' material and it's better. The optimum performance makes it a distinguished product. The multi head weigher machine produced by Kenwei has a wide range of applications. With our consistent focus on market norms, our products have been praised by many customers.
Product Information
Kenwei guarantees multihead weigher,weight checker,packaging machine,linear weigher,food metal detector,counting machine,packing accessories to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.

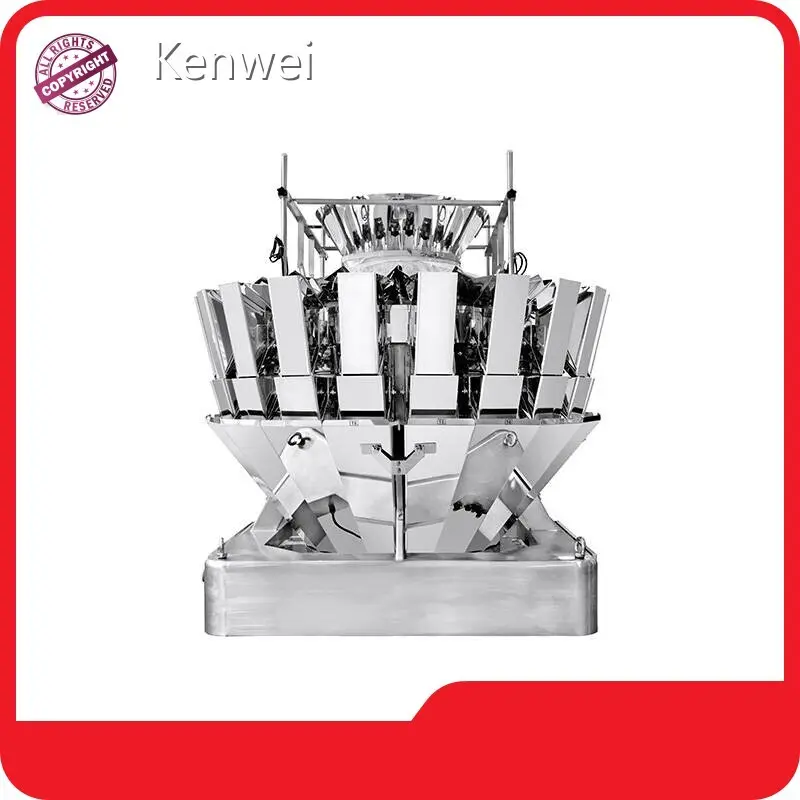

The 20-head combination weigher has two weighing modes. One is the mixing mode. The weighing range of the mixing mode is 20-2000g. According to the material, the maximum weighing speed can reach 65 bags/minute. Another weighing mode is a high-speed mode for a single material, the weighing range is 10-1000g, and the maximum weighing speed can reach 120 bags/min. Both models can be connected to the twin packaging machine, which can be used for weighing or packaging, forming a simple weighing and packaging system.
The upper storage funnel is divided to weigh two different products.
Separate the main vibrator, control the thickness of the product independently.
The integral machine frame and machine cabinet contribute to more stability and higher accuracy.
Machine frame, discharge chute with compatible design, single discharge chute gate can change to double with twin packaging machine when just one kind of product.
Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.
Stable actuator design reduces mechanical vibration and improves the load cell value accuracy.
| Model | JW-A20 | JW-A20 | JW-A20 | JW-A20 | JW-A20 |
Weighing Range | 20-2000g（Mixing Mode）/10-1000g（Single Mode） | 10-1000g | |||
| Identify Code | A20-2-1 (O Type) | A20-2-1 (O Type) | A20-2-3 (8 Type) | A20-2-2 (O Type) | A20-2-4 (8 Type) |
Accuracy | X(0.5) | X(0.5) | X(0.5) | X(0.5) | X(0.5) |
Max Speed | 65P/M（Mixing Mode）/120P/M(Single-Mode) | 2x65P/M(Twin Packing Machine Mode) | |||
Hopper Volume | 1.6L | 2.5L | 1.6L/2.5L | ||
Control Panel | 10.1” Touch Screen | ||||
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||||
Driving System | Step Motor | ||||
Power Requirement | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A |
Packing Dimension(mm) | 1700(L)x1450(W)x1450(H) | 1920(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) | 1950(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) |
Gross Weight | 850kg | ||||
Application
Company Advantages
Through constant technological invention, Guangdong Kenwei Intellectualized Machinery Co.,LTD. is at a leading position in the multi head weigher machine business. Our technical team in Guangdong Kenwei Intellectualized Machinery Co.,LTD. always updates their professional knowledge. . We now have a profound commitment to social responsibility. We believe that our efforts will deliver a positive influence on our customers across numerous places. Welcome to visit our factory!
If you are in need for products of reliable quality and affordable price, please contact us at any time!
