Bulk Production Check Weight Scale Factory Direct Supply for Hardware Plastics
Product details of the check weight scale
Product Specification
Availability: OEM/ODM
Product Introduction
Kenwei check weight scale is manufactured using optimum quality materials and sophisticated technology. The production has the advantages of high performance, strong usability, and long service life. Kenwei has enough capability to produce bulk production of check weight scale in a high efficient way.

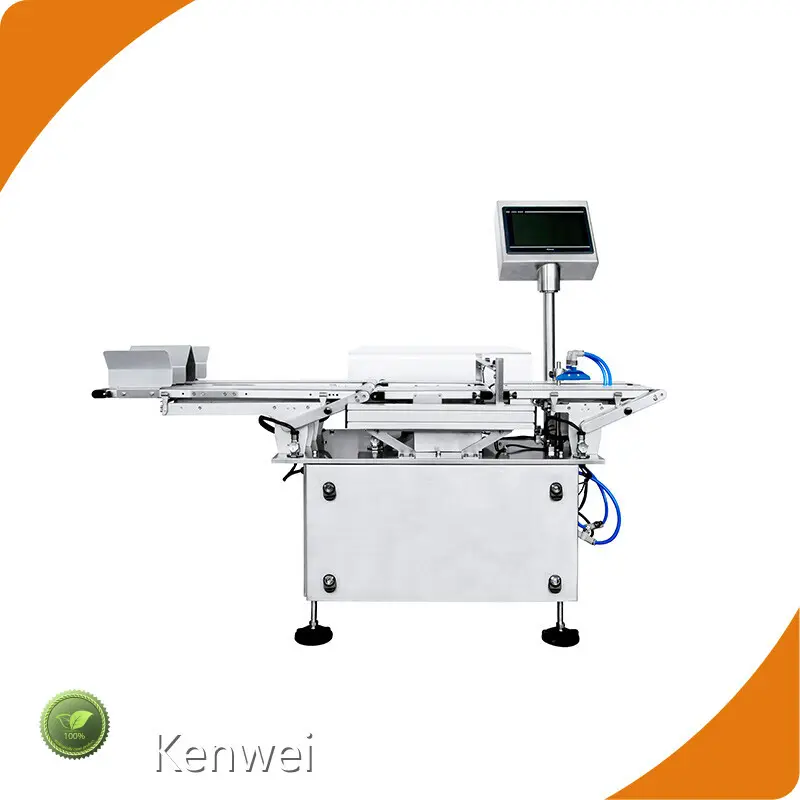

Double Column Check Weigher
1. The two delivery lines are independently rated and non-interference.
2. Grand New modular control system, the highest precision of 0.2g.Fault alarm by a text displaying.
3. The conveyor structure adopts an easy disassembly design, which is convenient for disassembly and cleaning.
4. Provide comprehensive production quality statistics, including a weight distribution column chart, total weight produced, number of qualified packages, qualification rate, number of non-conforming packages, actual weight, and the production time of unqualified products.
A double conveyor line is adopted, the center distance is 192mm, the bandwidth is 100mm, and the equipment height is 650 adjustable.
It can be equipped with double-position horizontal bag feeding and packaging machine.
The weight of unqualified products by air blowing out.
Each transmission line is electronically controlled independently, sharing a 10.1-inch large touch screen.
| Model | JW-C200(C6 Double) |
| Identify Code | C200-2-4 |
| Weighing Range | 5-200g |
| Accuracy*1 | XIII(1) |
| Max. Speed*2 | 140PCS |
| Max Belt Speed | 20m/min |
| Belt Size(mm) | 320(L)X100(W) |
| Control Panel | 10.1” Touch Screen |
| Reject Method | Air Blowing |
| Power Requirement | 220V/800W/50/600Hz/4A |
| Packing Dimension(mm) | 1640(L)X590(W)X830(H) |
| Gross Weight | 162kg |
| *1:Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004 (E). | |
| *2: Depends on product shape, product density, target weight, etc. When the speed is higher than 140p/min, it needs to change with a special modular board. | |
It is suitable for material weight testing in food, medicine, meat, aquatic products, candy, condiment, and other industries.
2 different-weight products can be detected at the same time, and the sorting device automatically eliminates substandard products.
