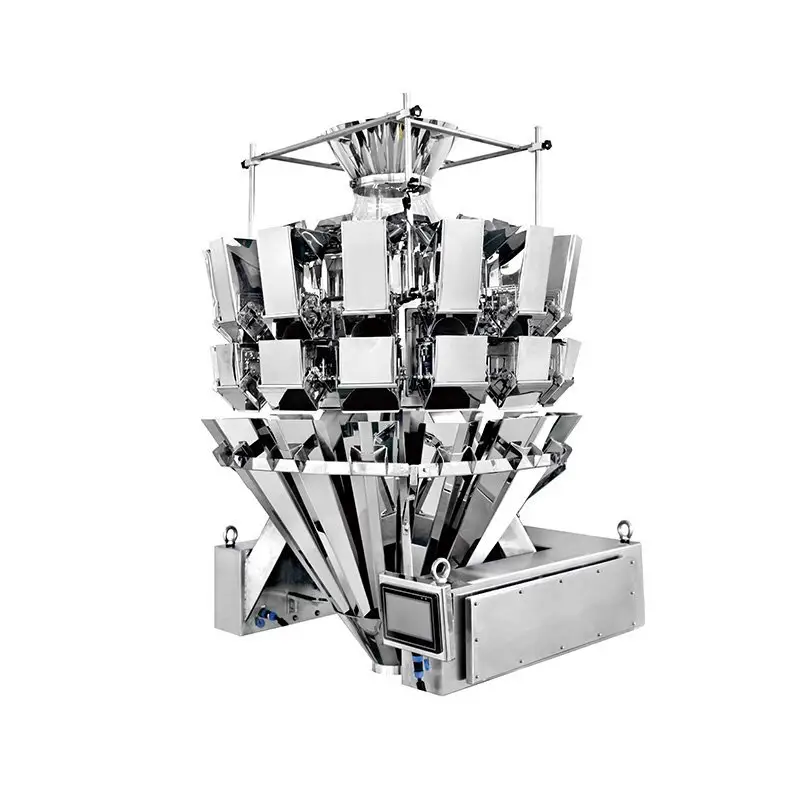

noodle screw frozen weight checker Kenwei Brand
1. Kenweiweight checker is designed to meet customer's unique individual style. Kenwei packaging machine is easy to clean
2. As a professional food weight scale manufacturer, Kenwei has a strong and perfect quality assurance system. Kenwei packaging machine is cost-effective and quality-high
3. Its functionality testing is in compliance with the expected standards. Kenwei packaging machine helps save costs and improve production efficiency
4. It is put on the market after strict quality inspection.
product features
product characteristic

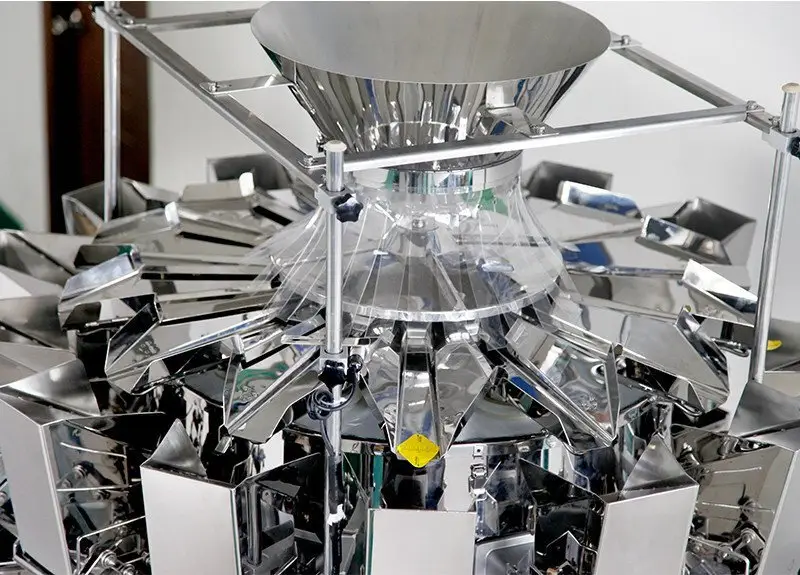

2. Special linear feeder pan to make sure of feeding process.

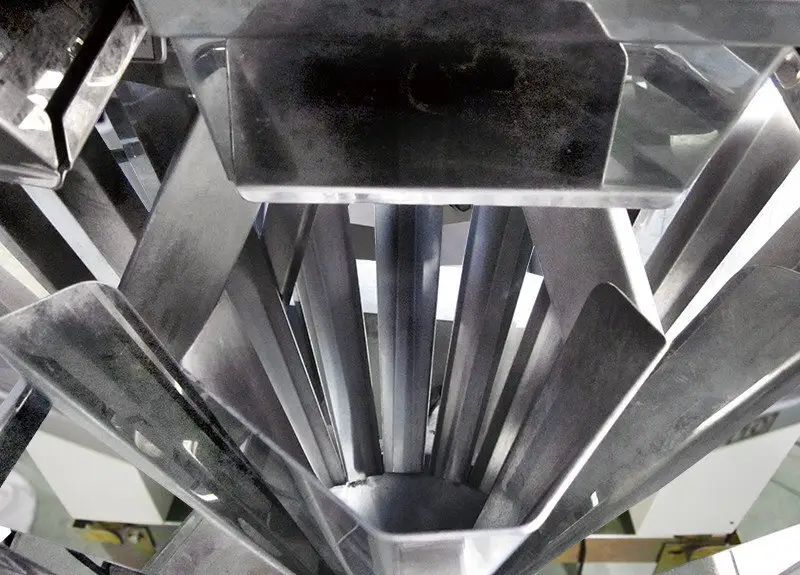

4. Independent discharge chute can make sure that material discharge into packaging machine vertically.
Technical Specification
Model | JW-A10 | JW-A14 | JW-AS14 | JW-AM14 |
Identify Code | A10-1-9 | A14-1-9 | AS14-1-9 | AM14-1-9 |
Weighing Range | 10-1000g | 10-1500g | 3-200g | 10-3000g |
Accuracy | X(0.5) | X(0.5) | X(0.5) | X(1) |
Max Speed | 30P/M | 60P/M | 60P/M | 60P/M |
Hopper Volume | 2.5L | 2.5L | 0.5L | 5L |
Control Panel | 7'' Touch Screen | 7'' Touch Screen | 7'' Touch Screen | 7'' Touch Screen |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | Dimple Plate/Timing Hopper/Printer/Reject Device | Dimple Plate/Timing Hopper/Printer/Reject Device | Dimple Plate/Timing Hopper/Printer/Reject Device |
Driving System | Step Motor | Step Motor | Step Motor | Step Motor |
Power Requirement | 220V/2000W/ 50/60Hz /12A | 220V/2000W/ 50/60Hz /12A | 2200V/1100W/ 50/60Hz /10A | 220V/2000W/ 50/60Hz /12A |
Packaging Dimension (mm) | 1620(L)*1100(W)*1420(H) | 1750(L)*1130(W)*1420(H) | 1190(L)*970(W)*950(H) | 2195(L)*1380(W)*2060(H) |
Gross Weight | 490kg | 490kg | 240kg | 650kg |
Applications
It is suitable for weighing stick shaped products, such as sausage, salty sticks, chopsticks, pencil,etc. max 200mm length.
Company Features
1. Kenwei regards quality as life line, so will make every effort to control quality.
2. weight checker is designed into various sizes and specifications as per the demands of clients. Inquire now!
