new Kenwei packaging machine from China

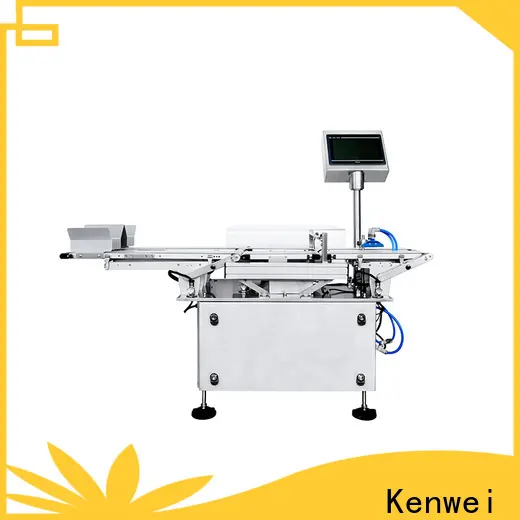

Double Column Check Weigher
1. The two delivery lines are independently rated and non-interference.
2. Grand New modular control system, the highest precision of 0.2g.Fault alarm by a text displaying.
3. The conveyor structure adopts an easy disassembly design, which is convenient for disassembly and cleaning.
4. Provide comprehensive production quality statistics, including a weight distribution column chart, total weight produced, number of qualified packages, qualification rate, number of non-conforming packages, actual weight, and the production time of unqualified products.
A double conveyor line is adopted, the center distance is 192mm, the bandwidth is 100mm, and the equipment height is 650 adjustable.
It can be equipped with double-position horizontal bag feeding and packaging machine.
The weight of unqualified products by air blowing out.
Each transmission line is electronically controlled independently, sharing a 10.1-inch large touch screen.
| Model | JW-C200(C6 Double) |
| Identify Code | C200-2-4 |
| Weighing Range | 5-200g |
| Accuracy*1 | XIII(1) |
| Max. Speed*2 | 140PCS |
| Max Belt Speed | 20m/min |
| Belt Size(mm) | 320(L)X100(W) |
| Control Panel | 10.1” Touch Screen |
| Reject Method | Air Blowing |
| Power Requirement | 220V/800W/50/600Hz/4A |
| Packing Dimension(mm) | 1640(L)X590(W)X830(H) |
| Gross Weight | 162kg |
| *1:Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004 (E). | |
| *2: Depends on product shape, product density, target weight, etc. When the speed is higher than 140p/min, it needs to change with a special modular board. | |
It is suitable for material weight testing in food, medicine, meat, aquatic products, candy, condiment, and other industries.
2 different-weight products can be detected at the same time, and the sorting device automatically eliminates substandard products.
