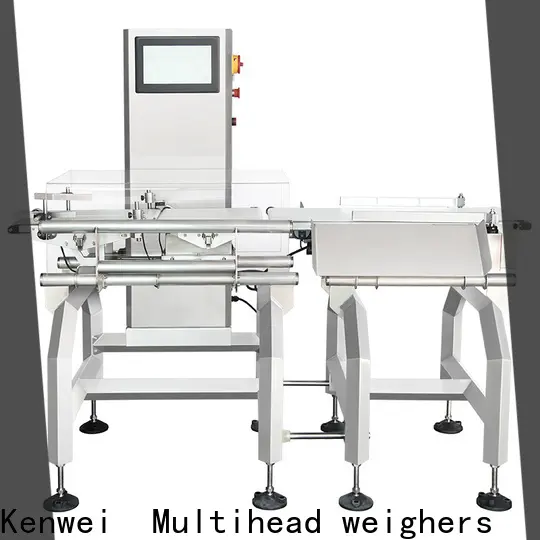

C2000 High-Speed Check Weigher
1、Grand new modular control system.
2、The fault alarm message can be displayed by text directly.
3、The parameter "self-learning" adjustment function simplifies the process of parameter setting.
4、Provide comprehensive production quality statistics, including weight by column chart, total production weight, number of qualified packages, qualified rate, number of unqualified packages, the actual weight of unqualified products, and production time.
The frame part is made of 304 welding, which is durable, clean, and sanitary.
The conveyor line structure is made of aluminum alloy material, which has a light structure and generous appearance.
The horizontal height of the conveyor line can be adjusted in the range of (750-850).
The conveyor belt structure adopts an easy-to-move design, which is convenient to be disassembled and clean.
| Model | JW-C2 |
| Identify Code | C2000-2-2 |
Weighing Range | 100-2000g |
Accuracy*1 | XIII(1) |
Max. Speed*2 | 90pcs |
Max Belt Speed | 52m/min |
Belt Size(mm) | 320(L)X300(W) |
Control Panel | 10.1” Touch Screen |
Reject Method | Air-reject |
Power Requirement | 220V/600W/50/60Hz/3A |
Packing Dimension(mm) | 1550(L)x800(W)x1450(H) |
Gross Weight | 210kg |
*1:Can refer to the national standard GB/T27738-2011 or the international Legal Organization No.61 International Recommendation OIML R61 2004 (E). | |
| *2: Depends on product shape, product density, target weight, etc. When the speed is higher than 140p/min, it needs to change with a special modular board. | |
It is applicable to electronic, pharmaceutical, food, beverage, health products, daily chemical, light industry, agricultural and sideline products, and other industries. It is suitable for box, bag, and weight selection of single material with length and width less than 300X200, height less than 115, and weight of 50~2000g.
