Kenwei vertical packaging machinery manufacturer

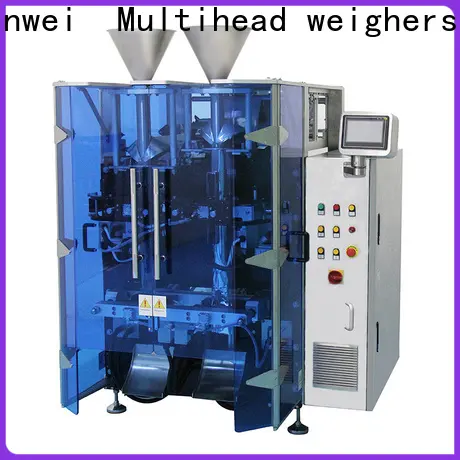

Fully Automatic High-Speed Vertical Double Filling Form-Fill-Seal machine VFFS is characterized by compact structure, a complete range of packaging machines, and auxiliary equipment, which are adaptable to a wide range of materials, space-saving. For A variety of laminated films,single-layer PE film, film thickness range 0.04mm~0.09mm, single PE film, paper Membrane packaging can be applied.
Applicable bag type: pillow bag.
Applicable packing materials: A variety of snack food, deep-frozen food, coffee, oatmeal, granulated sugar, salt, puffed food, rice, herbal, tea, small hardware, etc.
PLC control, man-machine interface, easy to operate and maintain.
Both film pulling driven system and horizontal sealing driven system controlled by servo motor.
Optical tracking devices to keep high packing speed and high accuracy.
The frame of the machine is made of stainless steel #304. equipped with auto-stop protection function when open the door.
| Item No. | JW-HD3830 |
| Film Width | 150~380mm |
| Bag Size Range | L*W=(50~300)*(50~180)mm |
| Packing Speed | 2*90bags/min |
| Film Pulling System | vacuum film pulling system |
| Gas Pression | 0.8MPa |
| Gas Consumption | 0.6m³/min |
| Power Requirement | 6KW/220V/50(60)Hz |
| Machine Size | L*W*H=2050*1850*1915mm |
| Machine Weight | 680KG |
