Kenwei packing vertical packing machine easy to disassemble for pillow bag

Company Advantages
1. Thanks to outstanding design,vertical packing machine takes the leading role in its market.
2. This product is characterized by its reliable chemical properties. It has a stable chemical composition which can be expressed by a chemical formula.
3. This product has been well recognized by the customers all around the world.
4. Thanks to its great application prospects, it has attracted more and more customers in the industry.

Economical vertical packaging machine, a variety of models economical vertical packaging machine frame is adopted 304 stainless steel material, equipped with the door security protection function, apply to the bag type has a pillow bags, Angle belt, printing bag, triangle bag bag type, suitable for all kinds of packaging materials, such as all kinds of leisure food, frozen food, coffee beans, oats, sugar, salt, rice, small hardware accessories, etc., affordable, cost-effective.

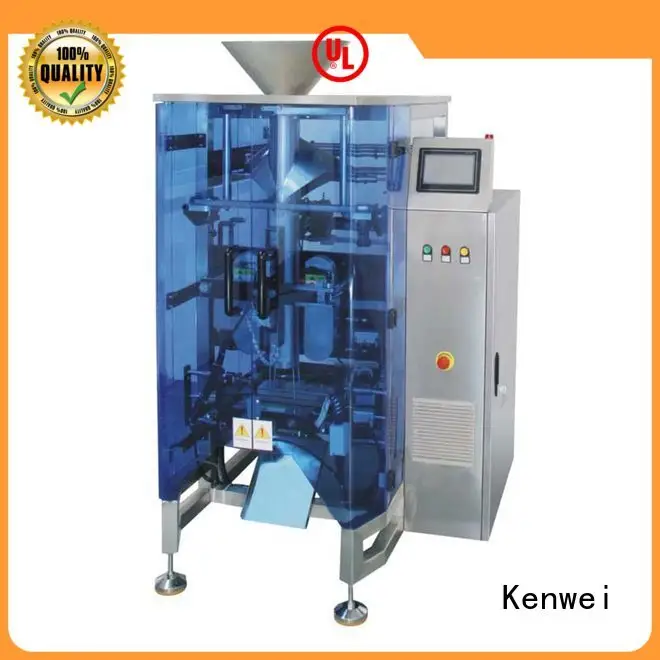

JW-E Series Economic vertical packing machine

Application:

◎Applicable bag type:Pillow bag,Gusset bag,Seal type bag。
◎Applicable film materials:Avariety of laminated films,single-layer PE film,film thickness range 0.04mm~0.15mm。
◎Applicable packing materials:A variety of recreation food,deep frozen food,milk powder,coffee,oatmeal,granulated sugar,

salt,puffed food,rice,herbal,tea,small hardware etc

Feature：

1.Automatic alarm and warning function by PLC.

2.Bag making:Making bag automatically by bag make machine,the layout type of bag making is vertical,the collar type is concave convex point flanging collar.

3.Horizontal Sealing:Servo motor is Horizontal seal sealing dynamic sealing bar heating type is continuation heating,the sealing temperature is constant temperature.horizontal servo

with cooling and blowing function,shut down when clamp materials and motor swing angel protection function.

4.Vertical sealing:cylinder is vertical seal sealing dynamic,standard vertical sealing is clamp seal,the sealing bar type is heat continuation,

temperature control is constant temperature.

5.Film pulling:The type of film pulling is Vacuum Synchronous belt double,the dynamic of film pulling driven motor,the cone gear drive form,film oulling parts

equipped with manual transfer switch for better adjustment.

6.Film releasing:It adopts motor drives robber roller,film release adopts and controlled by three speed.Equipped with coding adjustment,eye mark tracking,

rectify deviation adjustment,film transporting antishake,no film alarm,store film detector,Film release brake,pneumatic film pressing function etc.

7.Frame:Assembly frame blue perspective plexiglass door,special electric tank fission rotating human-machine interface.

Equipped with auto-stop when open the door protection function.

Specifications:

OPtional device:

Gusset device	Nitrogen charging device
Chain bag	vibrating device
Punching device	Sealing device
Exhaust/Inflatalbe devices	Easy tear device
PE film sealing	Bag support device
Anti-Static electricity	Evacuating device
Horizontal seal cooling blowing device	Film rectify deviation adjust device
Automatic feeding device

Common related equipment:

Multihead weigher/Liner weigher	Cup measuring machine
Auger filler	Liquid pump





Company Features
1. With the expanding of vertical packing machine , Kenwei has caught more and more attention of the customers.
2. Our factory adopts imported new production facilities. These facilities have helped us speed up our manufacturing process and enable us to provide better products and faster manufacturing service.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. provides a range of products and a stable supply at a reasonable price. Get price! Guangdong Kenwei Intellectualized Machinery Co.,LTD. is committed to providing high quality vertical packaging machinery . Get price! Our high quality Kenwei branded products will surely meet your expectations. Get price!
