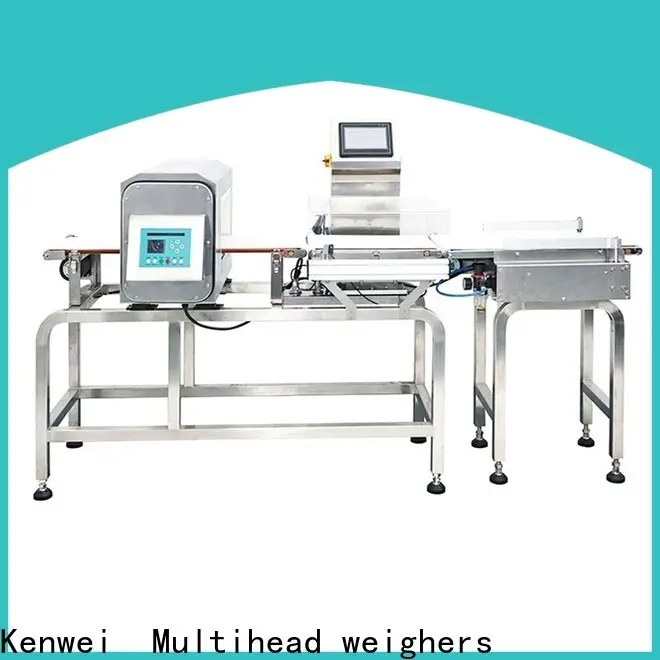

Kenwei new checkweigher and metal detector from China
The combined check weigher and metal detector machine is integrated with the metal detector and the weight detector. At the same time, the product is tested for weight and missing metal in the last step of the inner packaging, which greatly improves the safety and reliability of the production. Used for post-packaging weight and metal inspection in food, pharmaceutical, chemical, textile, toy and other fields.
Product Features
Mechanical Character
Technical Specification
Model No. | JW-GC212 | JW-GC215 | JW-GC315 | JW-GC320 | |
Identify Code | GC212-1-1 | GC215-1-1 | GC315-1-1 | GC320-1-1 | |
Max package size | Width | 300 mm | 300 mm | 400 mm | 400 mm |
| Height | 120 mm | 150 mm | 150 mm | 200 mm |
Sensitivity | Fe | 0.8mm | 1.0mm | 1.0mm | 1.2mm |
| SUS | 1.5mm | 2.0mm | 2.0mm | 2.5mm |
Protection Class | IP54/IP65 | ||||
Speed(m/min) | 32-52 m/min | ||||
| Powder Requirement | 220V/440W/50/60Hz/2A | 220V/440W/50/60Hz/2A | 220V/660W/50/60Hz/3A | 220V/660W/50/60Hz/3A | |
| Packing Dimension | 1460(L)X1140(W)X1280(H) | 1460(L)X1200(W)X1280(H) | 1940(L)X1540(W)X1360(H) | 2080(L)X1480(W)X1360(H) | |
| Gross Weight | 270kg | 290kg | 380kg | 390kg | |
Applications
It is widely used for food, pharmaceutical, chemical, textile, clothes, toys, rubber, etc. It is the first choice for HACCP of the food industry and GMP of the pharmaceutical industry.
