Kenwei is a global professional manufacturer which specialized in weigher packing machines and multihead weigher machines.

Kenwei long-life packing machine china from China 1
Kenwei long-life packing machine china from China 2
Kenwei long-life packing machine china from China 3
Kenwei long-life packing machine china from China 1
Kenwei long-life packing machine china from China 2
Kenwei long-life packing machine china from China 3

Kenwei long-life packing machine china from China

Model:
JW-A14
MOQ:
1 set
Payment:
L/C, T/T
Place of Origin:
China
Brand:
Kenwei
Identify Code:
A14-3-1
Weighing Range:
10-1000g
Accuracy:
X(0.5)
Max Speed:
130P/M
Hopper Volume:
2.0L
Control Panel:
10.1''Touch Screen
Options:
Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System:
Step Motor
Power Requirement:
220V/1000W/ 50/60Hz /10A
Packing Dimension(mm):
1760(L)*1190(W)*1390(H)
Gross Weight:
500kg
Inquiry
Material
304 stainless steel
Certification
CE, OIML, SGS
Availability
OEM/ODM
Delivery Time
7-30days
Start Port
zhongshan port
Supply Ability
500 sets/year
Company Advantages
1. The sophisticated design of packing machine china allows for bulk weigher . High precision molds and excellent components are adopted in Kenwei packaging machine
2. Once there is any problem for our packing machine china , your sales will follow the case and help to solve at earliest time. It is a great variety of Kenwei packaging machines for choices
3. The product is corrosion resistant. It has been tested under salt mist, including neutral salt mist and acid-salt spray. Kenwei packaging machine is cost-effective and quality-high
4. The product has good deformation resistance. It will not be affected by a sufficient load from other objects, remaining its original shape. Kenwei packaging machine is certified under CE
5. The product is safe to use. Any parts that are easily tossed out are locked in a housing to guarantee no potential dangers occur. Kenwei packaging machine is manufactured based on industry standards

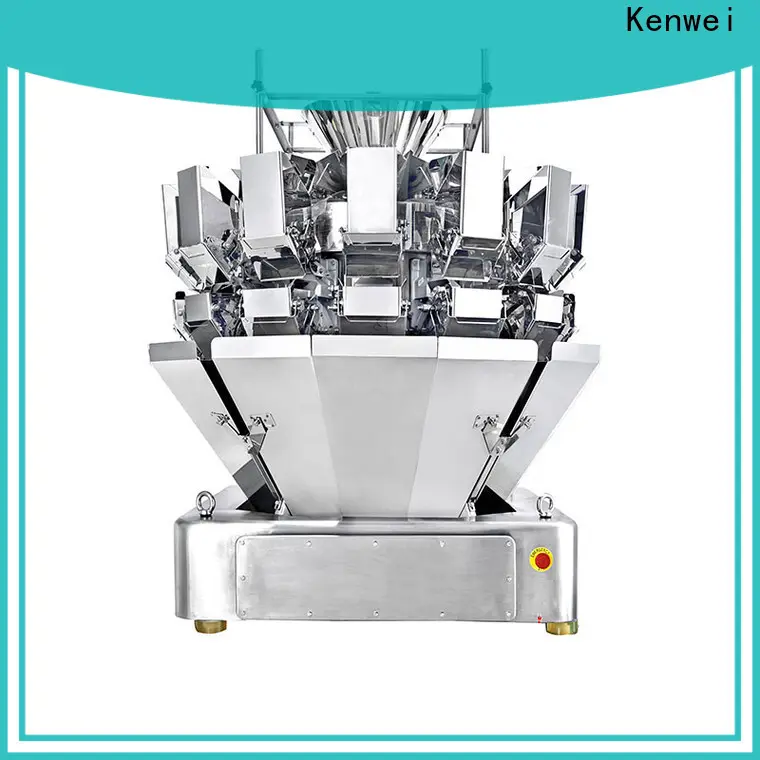

High-speed weigher is a new spring-free aluminum shell design structure, double chute feeding combined with double high-speed hopper alternating feeding, greatly improve the speed of feeding, suitable for melon seeds, peanuts, nuts, almonds, raisins, candy, pistachios, and other materials weighing. The 18 heads high-speed weigher is called the hopper with 2L, and the maximum weighing speed can reach 180 bags/min.

Product Features

bg
  • 01
    Special load cell with high precision and high standard
  • 02
    Intelligent fault alarm, convenient maintenance
  • 03
    High speed staggered discharging function, effectively prevent blocking materials
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers
  • 04
    With high integrated modular design makes mechanical and electronic components easy to install    and maintenance
  • 05
    Modbus industry-standard communication protocol, realize the interface combination of multihead    weigher and packaging machine
  • 06
    Other features are the same as first-generation models

Product Characteristic

bg
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-1
1.High speed hoppers without springs to avoid the broken spring falling into packages;
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-2
2. New springless actuator design makes weighing more stable and fast;
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-3
3.Double-layer discharge chutes with double high speed timing hoppers to feed packaging machine in    turn,surmount the speed problems of discharging chute feeding time;
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-4
4. Machine case and middle seat integral welding greatly enhance the strength of the machine, makes    the hopper shorter stable time;

Technical Specification

bg



Model

JW-A14

JW-A18

Identify Code

A14-3-1

A18-3-1

Weighing Range

10-1000g

10-1000g

Accuracy

X(0.5)

X(0.5)

Max Speed

130P/M

180P/M

Hopper Volume

2.0L

Control Panel

10.1'' Touch Screen

Options

Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System

Step Motor

Power Requirement

220V/1000W/ 50/60Hz /10A

220V1000W/50/60Hz/10A

Packing Dimension(mm)

1760(L)*1190(W)*1390(H)

1950(L)X1650(W)X1650(H)

Gross Weight

500kg

800kg

Applications

bg
Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-5

    It’s suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and other granules, sheet, strip, round shape material.


Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. is an enterprise specialized in packing machine china , which owns a leading technical team from this trade. The standard nature of these processes permits us to fabricate bulk weigher .
2. Quality speaks louder than number in Guangdong Kenwei Intellectualized Machinery Co.,LTD..
3. Almost all technician talent for the industry of multi head packing machine work in our Guangdong Kenwei Intellectualized Machinery Co.,LTD.. We are a responsible company working to ensure that technology and innovation drive sustainable and social development. We have strengthened this commitment to our employees, clients, and partners by leveraging three fundamental pillars: Diversity, Integrity, and Environmental Sustainability. Get price!
