Kenwei high standard Kenwei vertical form fill and seal machines customization

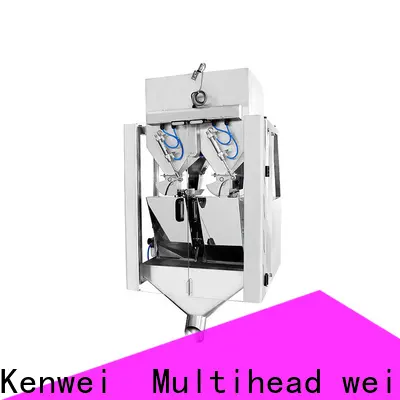

The 2 head high speed linear weigher machine has a 6-liter weighing hopper, and the weighing range is 500 to 4000 grams. The fastest weighing speed of the linear weigher is 28 bags/min, which is suitable for rapid feeding of small granular materials such as sugar, salt, seeds, monosodium glutamate, rice, and small beans, and quantitative weighing to accurately supplement the target weight. What’s more, It can be connected to the packaging machine.
Gate discharge function, can quickly discharge materials, linear vibrator pan high-precision feeding.
6L weighing bucket has anti-leakage function to prevent small materials from breaking open the bucket door and causing inaccurate weighing.
Two different materials can be weighed at the same time to achieve mixed material packaging.
The body of the whole equipment is made of 304 stainless steel, which is easy to clean.
75L capacity inlet hopper has 4 outlets, 2 of which can be discharged rapidly.
The cylinder gate can unload material quickly, and automatically control the switch for precise feeding.
The weighing hopper is equipped with a wind-proof Plexiglass door to isolate interference.
| Model | JW-AX2 |
| Identify Code | X2-2-3 |
| Weighing Range | 500~4000g |
| Accuracy #1 | X(1) |
| Max. Speed #2 | 28P/M |
| Hopper Volume | 6L |
| Parameters Press No. | 100 |
| Max Products Mixed | 2 |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V / 1000W / 50/60Hz / 4.5A |
| Packing Dimension(mm) | 900(L)x1200(W)x1200(H) |
| Gross Weight | 170kg |
| #1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61. | |
| #2: Depends on product shape, product density, target weight, etc. | |
It is suitable for white sugar, salt, seeds, monosodium glutamate, small particles and other materials, used in food industry, medicine industry, chemical industry, plastic industry and other industries material weighing occasions. For good fluidity, the single head requires weighing 1-4kg can be suitable for the application.
