Kenwei high standard electronic weighing machine affordable solutions

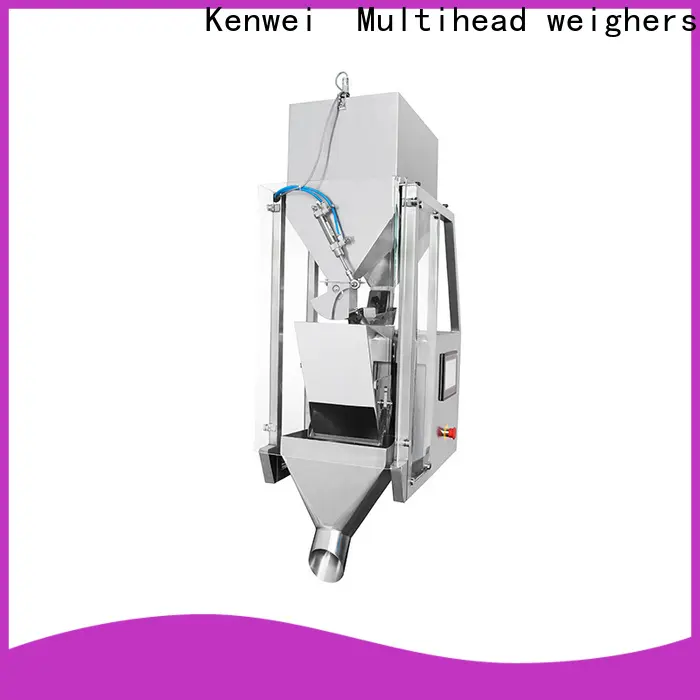

The 1 head high speed linear weigher machine with interrupting movement is indicated to Vertical, Form, Fill and seal (VFFS) high quality three side seal (back seal) packet machine. It is a scale filling machine, the weight range from 500 gr. Up to 4000gr. The 1 head linear weigher machine is able to pack granular products like pulses, rice, sugar, nuts, etc. Fast return for investment by largely saving large quantities of raw material and labor costs. What’s more, Depending on the user's request, the number of minutes may change. Filling accuracy depends on product density and product type.
Gate discharge function, can quickly discharge materials, linear vibrator pan high-precision feeding.
6L weighing bucket has anti-leakage function to prevent small materials from breaking open the bucket door and causing inaccurate weighing.
The body of the whole equipment is made of 304 stainless steel, which is easy to clean.
The weighing hopper is equipped with wind-proof Plexiglass door to isolate interference.
6L capacity inlet hopper has two outlets, one of which can be discharged rapidly.
The cylinder gate can unload material quickly, and automatically control the switch for precise feeding.
| Model | JW-AX1 |
| Identify Code | X1-2-3 |
| Weighing Range | 500~4000g |
| Accuracy #1 | X(1) |
| Max. Speed #2 | 15P/M |
| Hopper Volume | 6L |
| Parameters Press No. | 100 |
| Max Products Mixed | 1 |
| Control Panel | 7" Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V / 700W / 50/60Hz / 3.2A |
| Packing Dimension(mm) | 1000(L)x640(W)x1200(H) |
| Gross Weight | 90kg |
| #1: Please refer to national standard GB/T27738-2011 or international recommendation OIML R61 2004 (E) of international Legal Metrological Organization 61. | |
| #2: Depends on product shape, product density, target weight, etc. | |
It is suitable for white sugar, salt, seeds, monosodium glutamate, small particles and other materials, used in food industry, medicine industry, chemical industry, plastic industry and other industries material weighing occasions. For good fluidity, the single head requires weighing 1-4kg can be suitable for the application.
