Kenwei frozen foodpack with high quality for materials with oil
-
v s
1. Kenwei weighers is produced in fast and accurate flexibility of production methods.
2. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy.
3. This product is not subject to loss of power due to frictional resistance. In the design phase, careful attention has been given to the matter of lubrication of all surfaces which moves in contact with others.
4. The steady growth of Kenwei over the past few years is due to the high quality foodpack and services offered to our customers.

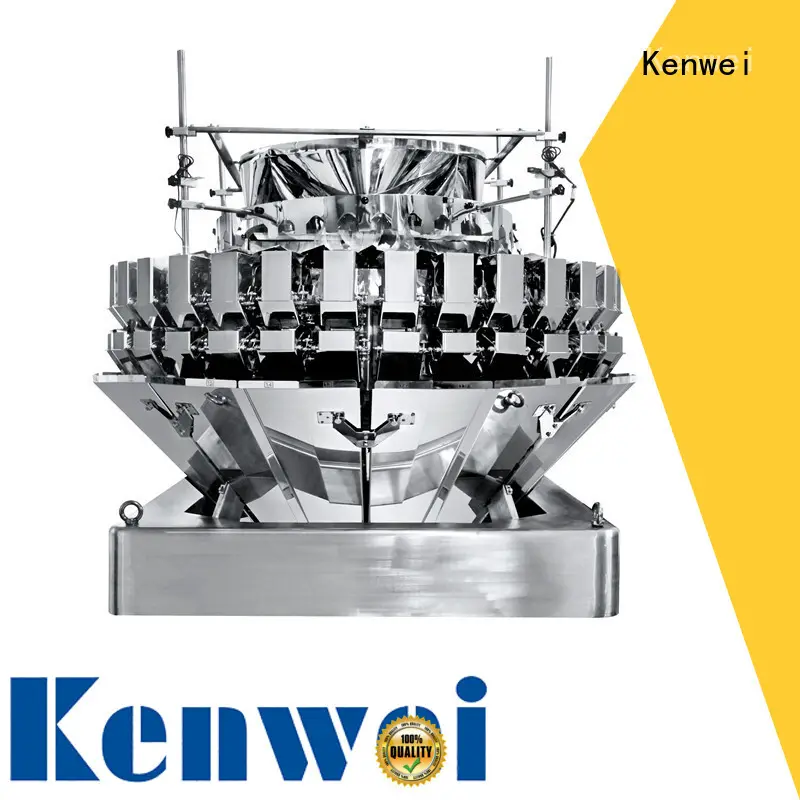

32 head mixing weigher is a 32 head mixing combination weighing scale with high weighing accuracy. It is suitable for granular materials with good fluidity. It can meet the requirements of two in one, three in one, four in one, and weighing mixing of various formulas. 32 head mixing weigher maximum weighing speed of mixtures can reach 60 bags/minute.
Product Features
Product Characteristic
2. Separate main vibrator,control the thickness of product independently
Technical Specification
Model | JW-A32 |
Identify Code | A32-2-1 |
Weighing Range | 5-240g |
Accuracy | X(0.5) |
Max Speed | Mixing Pruduct:60P/M |
Hopper Volume | 0.5L |
Control Panel | 10.1”Touch Screen |
Options | Dimple Plate/Timing Hopper |
Driving System | Step Motor |
Power Requirement | 220V/2500W/ 50/60Hz /15A |
Packing Dimension(mm) | 2100(L)x1480(W)x1130(H) |
Gross Weight | 600kg |
Applications
It is suitable for weighing small granules such as seeds, tea, coffee beans etc..
Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has engaged in the production of weighers for years. Our technology leadership position in the industry has been established and recognized.
2. Guangdong Kenwei Intellectualized Machinery Co.,LTD.'s forward-looking technology helps its customers stay ahead of the industry.
3. Helping customers meet or exceed their goals is our number one concern; we are in the business of forming personalized, collaborative partnerships with our customers. Call! We are aware of the importance of responsibility. We are committed to corporate social responsibility, working with various social and environmental institutions to encourage socially responsible practices.
YB-300K Automatic Packing Machine
Machine features:
1. This machine can finish all the work: bag making, measuring, material filling, sealing, counting and date code printing;
2. Photoelectric, tracing system or computer system can be provided without your specific requirements;
3.this machine takes advanced pneumatic sealing technology to make sealing more firm and neat.
4. This packing machine can equip date code printer for 1-3 lines characters.
packed sample:
Technical parameter:
Model | YB-300K |
Packing speed | 20-50 bags/min |
Packing range | 50g-1kg (depends on product) |
Film width | ≤ 450mm |
Making bag size | L: 50-300mm, W: 50-210mm |
Packing accuracy | ≤±1% (depends on product) |
Power | 1.9 KW |
Power supply | 1Ph. 220V, 50/60Hz |
Sealing type | Pillow seal, 4 sides seal |
Machine net weight | 350kg |
Machine dimension | L800 × W1100 × H1900mm |
Machine pictures:
| Technique specification | |
| key word | combined weight full automatic packing sysytem |
| Type | SK-720 DT |
| Air consumption | 4m3/min 6kg/cm2 0.65Mpa |
| Packing film width | Max 720mm |
| Bag length | 100-500mm |
| Bag width | 180-350mm |
| Max. film roll diameter | Max.360mm |
| Packing speed | 5-55bags/min |
| Packing thickness | 0.04-0.08mm |
| Power supply | 220V.50/60Hz.3Kw |
| Dimension | (L)1800x(W)1310x(H)2050mm |
| Machine Net Weight | 750kg |
| The range of packing weigh | <5000 g |
| Device | Ten head combined weigher, Z type material conveyor, Vibrating feeding machine, Supporting platform, Finished product conveyor |
| Application | Apparel, Beverage packing machine, Chemical, Foodpacking machine,rice packing machine Machinery & Hardware, Textiles |
Application
Multihead weighers meet all requirements of high speed, maximum accuracy, versatility, easy cleaning and maintenance.
They are s uitable to handle granular products: Food products (biscuits, dried short pasta, sweets, coffee grains, chocolates,
tea,snacks, grated cheese, rice, spices, legumes, dried fruit, pet food, baking products) and non food products
(small bolts and nuts, electrical and hydraulic parts, metal and plastic small parts, etc. )
