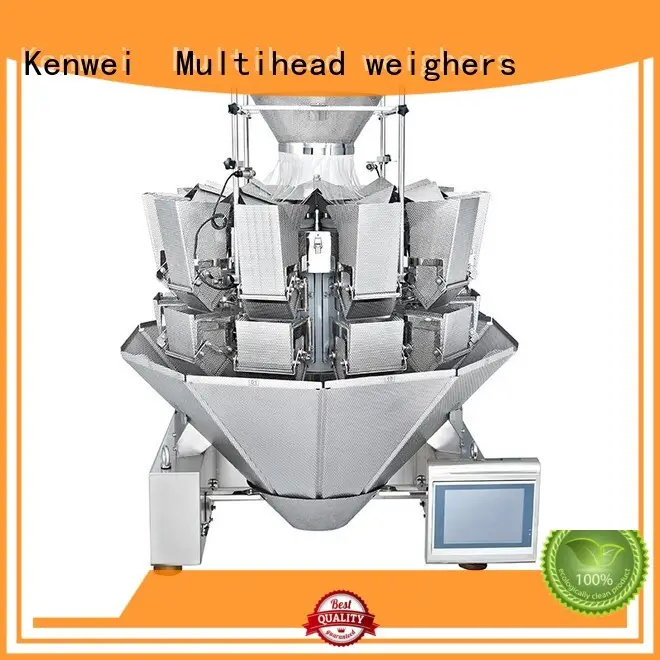

Kenwei frozen food packaging machine china nospring outdoor
-
v s
1. Various packaging equipment provided by Guangdong Kenwei Intellectualized Machinery Co.,LTD. has reasonable structure and reliable quality.
2. The product is a high quality product with a long service life and stable performance.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. is famous for its top quality of packaging equipment and professional after-sales services.
product features
product characteristic
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
Technical Specification
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-7 | A14-1-7 |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 120P/M |
Hopper Volume | 1.6L/2.5L | |
Control Panel | 7”Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /12A |
Packing Dimension(mm) | 1620(L)X1100(W)X1110(H) | 1750(L)X1130(W)X1200(H) |
Gross Weight | 380kg | 490kg |
Applications
It is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.
Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has successfully established its own brand in the field of packaging equipment .
2. Implementing strict quality control measures to ensure that the quality of the food packing machine is excellent which is great.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD.'s mission is to provide high quality products at competitive prices. Inquire now! Guangdong Kenwei Intellectualized Machinery Co.,LTD.' purpose is to strengthen its technological power to be an expert in weight checker field. Inquire now! The customer is always the starting point and end-point of the realization of value for Guangdong Kenwei Intellectualized Machinery Co.,LTD.. Inquire now!
Snack Food Packaging Equipment Machinery
The machine is an automatic packing machine for premade bags. It can meet the requirment which needs different specifications, big volume but small capacity. It can not only pack 3-side or 4-side sealed bag, but even also bags with hanging hole, standing pouches and shaped bags etc. It is applicable of powder,granule,liquid,paste and blocks etc by using different measuring devices. It is convenient to switch the bag type.
item | parameter | |
Packingparameter | smallest bag | 110×120mm(width*height) |
biggest bag | 240×320(350)mm(width*height) | |
volume | 2000ml(max) | |
speed | ≤60bags/minute | |
Equipment specification | size | 2685mm×1000mm×1360mm (length*width*height) |
weight | 1000kg | |
condition | temperature | -10℃—+55℃ |
Relative humidity | ≤85%(no condensation) | |
voltage | AC380V,50Hz | |
Air pressure | 0.7Mpa | |
Air consumption | 300L/min | |
power | 4.5Kw | |
