Kenwei bottle filling machine design1
1. Apart from our professional team, a perfect Kenwei automatic weighing also can't be finished without high-quality materials. Kenwei packaging machine works at high speed
2. Thanks to its long service life, the product helps achieve energy efficiency, especially the large scale of installation projects. Kenwei packaging machine helps save costs and improve production efficiency
3. There is a protection system on this product to prevent the electrostatic discharge may lead to instantaneous high current and Highfield. High precision molds and excellent components are adopted in Kenwei packaging machine

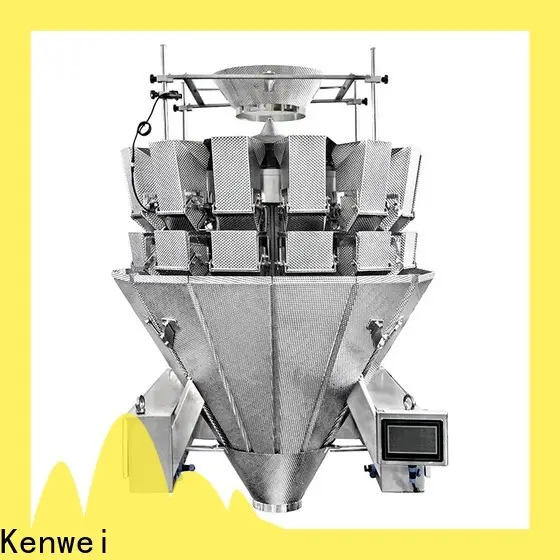

Cheese Combination Scale is a weighing equipment which can weigh soft and sticky materials such as cotton candy and preserved fruit besides cheese. The cheese scale uses a small twisted groove with 60 degrees angle, which makes the material fall smoothly and effectively controls the phenomenon of sticky material. The maximum weighing speed can reach 100 packs per minute.
Product Features
Product Characteristic
2. Enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing;
6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
Technical Specification
Model | JW-A10 | JW-A12 | JW-A14 |
Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
Weighing Range | 10-1000g | 10-1500g | 10-1500g |
Accuracy | X(0.5) | X(0.5) | X(0.5) |
Max Speed | 60P/M | 100P/M | 100P/M |
Hopper Volume | 1.6L / 2.5L | ||
Control Panel | 7'' Touch Screen | ||
Options | Timing Hopper/Printer/Reject Device | ||
Driving System | Step Motor | ||
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1200W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /10A |
Packaging Dimension (mm) | 1620(L)X1100(W)X1110(H) | 1700(L)X1110(W)X1130(H) | 1750(L)X1130(W)X1420(H) |
Gross Weight | 380kg | 450kg | 490kg |
Applications
It is suitable for weighing soft and sticky material, such as cheese, jelly candy,cotton candy, preserved fruits, candied fruit, etc.
Company Features
1. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has built a good reputation for manufacturing automatic weighing . We also accumulated years of expertise in developing and designing products.
2. We are possessed with a manufacturing certificate. This certificate permits all of our production activities, including materials sourcing, R&D, designing, and producing.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. has set a goal to be the leader in the bottle filling machine industry. Contact us!
