Kenwei best powder filling machine manufacturer

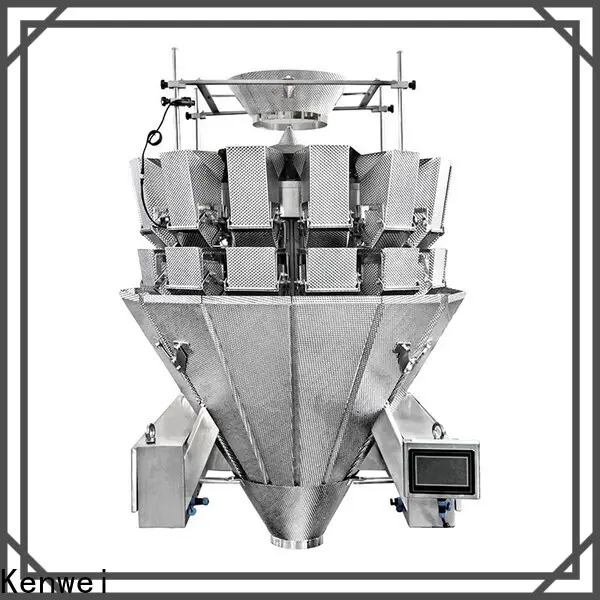

Cheese Combination Scale is a weighing equipment which can weigh soft and sticky materials such as cotton candy and preserved fruit besides cheese. The cheese scale uses a small twisted groove with 60 degrees angle, which makes the material fall smoothly and effectively controls the phenomenon of sticky material. The maximum weighing speed can reach 100 packs per minute.
Product Features
Product Characteristic
2. Enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing;
6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
Technical Specification
Model | JW-A10 | JW-A12 | JW-A14 |
Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
Weighing Range | 10-1000g | 10-1500g | 10-1500g |
Accuracy | X(0.5) | X(0.5) | X(0.5) |
Max Speed | 60P/M | 100P/M | 100P/M |
Hopper Volume | 1.6L / 2.5L | ||
Control Panel | 7'' Touch Screen | ||
Options | Timing Hopper/Printer/Reject Device | ||
Driving System | Step Motor | ||
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1200W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /10A |
Packaging Dimension (mm) | 1620(L)X1100(W)X1110(H) | 1700(L)X1110(W)X1130(H) | 1750(L)X1130(W)X1420(H) |
Gross Weight | 380kg | 450kg | 490kg |
Applications
It is suitable for weighing soft and sticky material, such as cheese, jelly candy,cotton candy, preserved fruits, candied fruit, etc.
