Kenwei is a global professional manufacturer which specialized in weigher packing machines and multihead weigher machines.

Kenwei batch weigher design

Model:

JW-A14

MOQ:

1 set

Payment:

L/C, T/T

Place of Origin:

China

Brand:

Kenwei

Identify Code:

A14-3-1

Weighing Range:

10-1000g

Accuracy:

X(0.5)

Max Speed:

130P/M

Hopper Volume:

2.0L

Control Panel:

10.1''Touch Screen

Options:

Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System:

Step Motor

Power Requirement:

220V/1000W/ 50/60Hz /10A

Packing Dimension(mm):

1760(L)*1190(W)*1390(H)

Gross Weight:

500kg

Inquiry

Material

304 stainless steel

Certification

CE, OIML, SGS

Availability

OEM/ODM

Delivery Time

7-30days

Start Port

zhongshan port

Supply Ability

500 sets/year

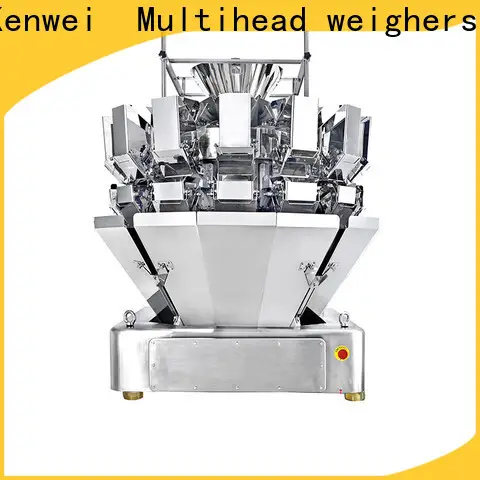

High-speed weigher is a new spring-free aluminum shell design structure, double chute feeding combined with double high-speed hopper alternating feeding, greatly improve the speed of feeding, suitable for melon seeds, peanuts, nuts, almonds, raisins, candy, pistachios, and other materials weighing. The 18 heads high-speed weigher is called the hopper with 2L, and the maximum weighing speed can reach 180 bags/min.

Product Features

01
Special load cell with high precision and high standard
02
Intelligent fault alarm, convenient maintenance
03
High speed staggered discharging function, effectively prevent blocking materials

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers

04
With high integrated modular design makes mechanical and electronic components easy to install and maintenance
05
Modbus industry-standard communication protocol, realize the interface combination of multihead weigher and packaging machine
06
Other features are the same as first-generation models

Product Characteristic

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-1

1.High speed hoppers without springs to avoid the broken spring falling into packages;

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-2

2. New springless actuator design makes weighing more stable and fast;

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-3

3.Double-layer discharge chutes with double high speed timing hoppers to feed packaging machine in turn,surmount the speed problems of discharging chute feeding time;

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-4

4. Machine case and middle seat integral welding greatly enhance the strength of the machine, makes the hopper shorter stable time;

Technical Specification

Model	JW-A14	JW-A18
Identify Code	A14-3-1	A18-3-1
Weighing Range	10-1000g	10-1000g
Accuracy	X(0.5)	X(0.5)
Max Speed	130P/M	180P/M
Hopper Volume	2.0L
Control Panel	10.1'' Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System	Step Motor
Power Requirement	220V/1000W/ 50/60Hz /10A	220V1000W/50/60Hz/10A
Packing Dimension(mm)	1760(L)1190(W)1390(H)	1950(L)X1650(W)X1650(H)
Gross Weight	500kg	800kg

Applications

Kenwei -Find Bag Weigher counting Scales On Kenwei Multihead Weighers-5

It’s suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and other granules, sheet, strip, round shape material.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
