fast shipping weight check machine from China

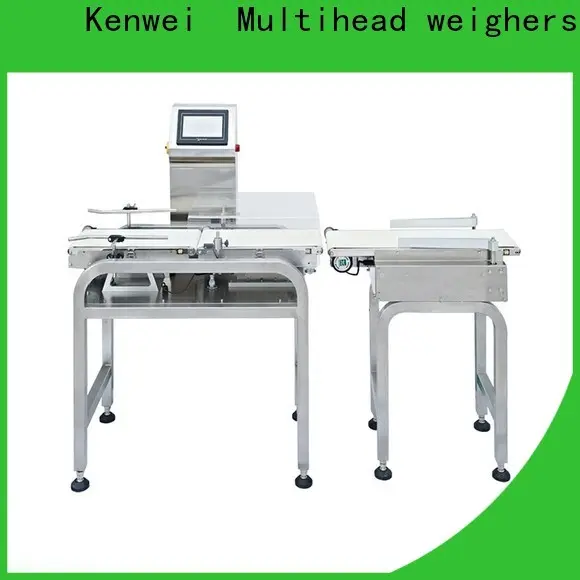

The check weigher is used to check whether the weight of a single product is in accordance with the set goal, and the sorting device automatically eliminates the substandard products. It has the eliminating methods of rocker arm, pneumatic push rod, blowing, sliding, etc. The maximum conveying speed of the sorting scale is 55 meters per minute, and it can handle many different packaging styles, including bulk paper bags, plastic bags, cartons, metallized film packaging, etc.
Product Features
Technical Specification
Model | JW-C200 | JW-C1000 | JW-C2000 |
Identify Code | C200-1-1 | C1000-1-1 | C2000-1-1 |
Weighing Range | 5-200g | 100-1000g | 10-2000g |
Accuracy | XIII(1) | XIII(1) | XIII(1) |
Max.Belt Speed | 55m/min | 52m/min | 52m/min |
Max.Speed | 100 PCS | 80/PCS | 80PCS |
Belt width | 150mm | 220mm | 300mm |
Belt Size | 350(L)*150(W)mm | 450(L)*220(W)mm | 450(L)*300(W)mm |
Power Requirements | 220V/ 400W / 50/60Hz | 220V/400W / 50/60Hz | 220V/400W / 50/60Hz |
Packing Dimension(mm) | 1250(L)*570(W)*1150(H) | 980(L)*800(W)*1290(H) | 980(L)*860(W)*1290(H) |
Reject Method | Air blowing | Air blowing/Air-reject/Pneumatic pusher/Slide type | |
Model | JW-C3000 | JW-C6000 |
Identify Code | C3000-1-1 | C6000-1-1 |
Weighing Range | 10-3000g | 10-6000g |
Accuracy | XIII(1) | XIII(1) |
Max.Belt Speed | 40m/min | 40m/min |
Max.Speed | 50PCS | 40 PCS |
Belt width | 400mm | 400mm |
Belt Size | 650(L)*400(W)mm | 650(L)*400(W)mm |
Power Requirements | 220V/600W/ 50/60Hz | 220V/600W/50/60Hz |
Packing Dimension(mm) | 1600(L)×950(W)×1490(H) | 1600(L)X950(W)X1490(H) |
Reject Method | Pneumatic pusher/Slide type | |
Applications
It is used to check whether the single bag weight is conformed to the preset weight or not and auto removes the unqualified products by the rejection device.
