durable packaging machine easy operation
1. Kenwei check weight scale has been tested by the in-house testing department. For example, the non-destructive testing processes such as pressure, vacuum and leak testing have been strictly performed.
2. This product keeps the appearance clean. It has a unique metal-coated surface that effectively prevents dust and fumes from sticking during operation.
3. As a professional packaging machine manufacturer, the company has a strong and perfect check weight scale system and good corporate culture.
4. The result shows: our packaging machine has met the requirements of the check weight scale standard, the process has advantages of checkweigher scale .

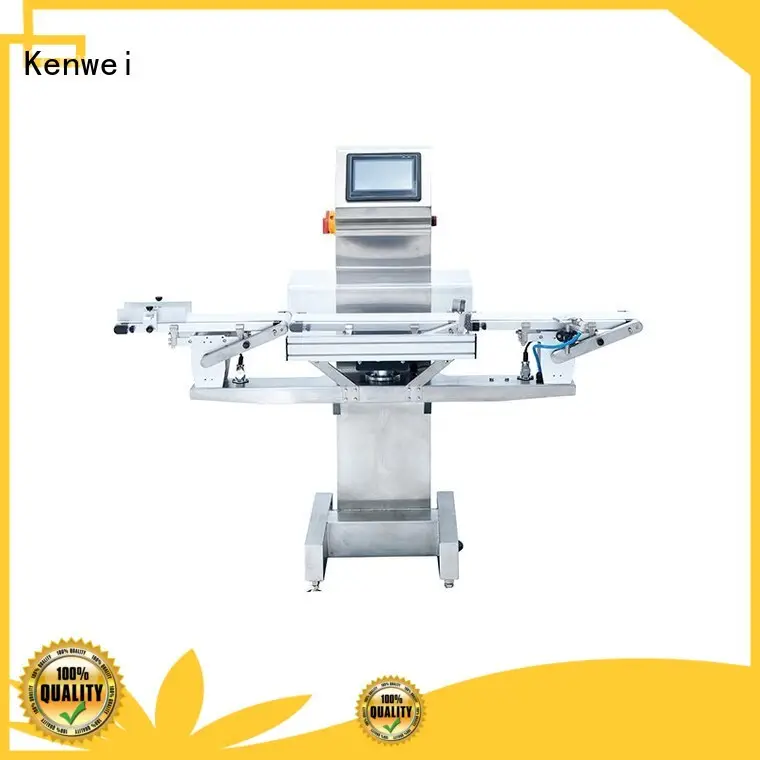

The check weigher with high precision is used to check whether the weight of a single product matches the set target, and the sorting device automatically rejects substandard products. The new high-integrated modular control system provides comprehensive production quality statistics, including Various data, including weight distribution column chart, qualified package number, pass rate, production time, etc.
product features
Technical Specification
Model | JW-C200 | JW-C200 |
Identify Code | C200-2-1 | C200-2-2 |
Weighing Range | 5-200g | 2-200g |
Accuracy | ±0.3-0.5g | ±0.3-0.5g |
Max.Belt Speed | 80m/min | 70m/min |
Max.Speed | 150 PCS | 130/PCS |
Belt width | 100mm | 100mm |
Belt Size | 330(L)*100(W)mm | 330(L)*100(W)mm |
Power Requirements | 220V / 500W / 50/60Hz | 220V / 500W / 50/60Hz |
Packing Dimension(mm) | 1450(L)*570(W)*1280(H) | 1450(L)*570(W)*1280(H) |
Reject Method | Air blowing | Air blowing |
Applications
It is used to check the weight of packed bags and boxes , and remove the unqualified ones by the rejection device .
Company Features
1. We export our packaging machine to many countries, including check weight scale and etc.
2. We have a stable presence in the USA, Australia, and some Europe markets. We have a relatively significant influence in the international market. We have successfully finished several projects throughout the world.
3. Guangdong Kenwei Intellectualized Machinery Co.,LTD. adheres to the corporate tenet of 'Quality & Prestige First', strives for perfect industrial scale and services. Get quote! Guangdong Kenwei Intellectualized Machinery Co.,LTD. never stops working hard to bring better weight check machine for customers. Get quote! Kenwei aims to build brand celebrity by superior quality and mature after-sale service. Get quote!
[Name] | facial cleanser cosmetic packaging tube filling machine |
[Brand] | Makwell |
[Filling type] | Piston |
[filling volume] | 10-75ml, 20-200ml |
[Voltage] | 220V |
[Certificates] | ISO9001, CE |
[after-sales warranty] | Warranty time is 2year, our factory's Engineers available to service machinery overseas |
[Packaging] | high quality export standard's plywood package box |
[Delivery time] | 40 days for 10 pcs,60 days for 20 pcs |
[Payment] | LC,D/A,D/P,T/T,Western Union, Money Gram |
facial cleanser cosmetic packaging tube filling machine | Technical data |
facial cleanser cosmetic packaging tube filling machine Capacity | 30-60 tubes / min |
Filling volume | 10-75ml, 20-200ml |
Filling error | ≤±0.5% |
Main motor power | 1.1 Kw |
Sealing power | 0.6 Kw |
Work air pressure | 0.4-0.5 Mpa |
Water pressure | Local tap water |
Air displacement | <600 L / min |
Size | 1950x750x1850 mm |
Weight | 700 Kg |
1.All parts connect with material is produced by stainless steel and ceramic which is comply with GMP.
2.All parts is quick union and easy cleaning
3.Customer can easy adjust Filling capacity, Filling speed, Main machine speed
4.Filling head have protection against the drop system and will make sure no drop and drawbench.
5.The machine is automatic machine, no tube will not filling..
6.Structure: Put tube+filling+sealing+date+load tube
8.Filling dosage feature: no dripping, no forming, no spitting
facial cleanser cosmetic packaging tube filling machine used for follow industry:
1.Cosmetic Industry:Facial cream, Lipstick, Shampoo
2.Chemical Industry: Liquid Detergent, chemical raw material
